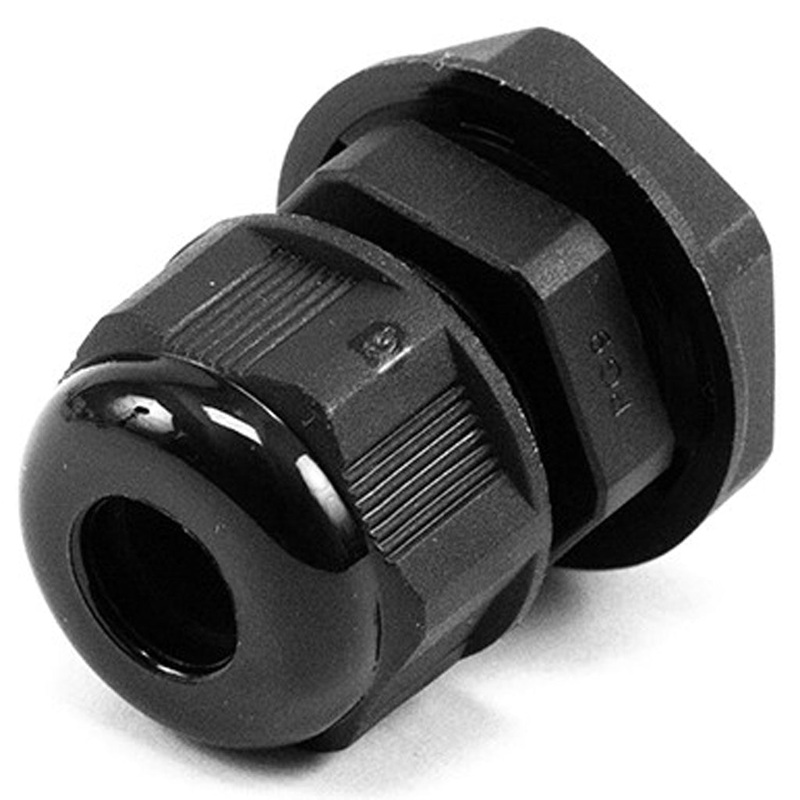

1427NCGPG9B – STRAIN RELIEF CORDGRIP PG9 15MM DIA 8MM WIRE NYLON BLK 30 LONG

Description

• Liquidtight cordgrip made from nylon

• Available in black (RAL 9005)

• Used where cable is entering or leaving an enclosure.

• Accepts a wide range of cable diameters due to large opening and NBR(nitrile rubber) seal.

• The strain relief elements tighten in a circular sequence on thesealing ring to give outstanding strain relief without twisting ordamaging the cable.

• Use the cordgrip with the smallest maximum diameter that will fityour application (see table below).

• Nylon locknut and EPDM oring included (as shown).

• Operating Temperatures:

  • Static state: 40C to 100C (up to 120 instantaneous)

  • Dynamic state: 20C to 80C (up to 100 instantaneous)

• Designed to meet NEMA Type 4 4X 6 6P 12 & 13 Protection toIP68.

• UL94V2 flammability rating.

• UL listed.
