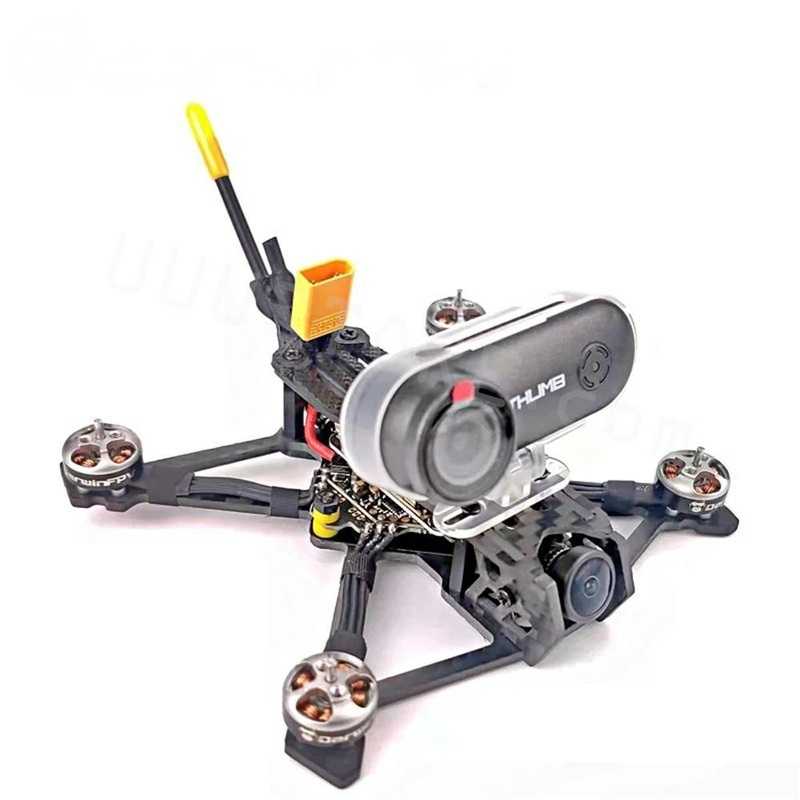

2023 New DarwinFPV TinyAPE/TinyAPE Freestyle – 2.5 Inch 2-3S FPV Racing RC Drone w/RunCam Nano 4 1103 Motor 5.8G VTX Thumb Camera ELRS TinyAPE

Description

DarwinFPV TinyAPE/TinyAPE FreestyleSPECIFICATIONS

Video Capture Resolution: Other

Type: HELICOPTER

Remote Distance: 1000

Remote Control: No

Recommend Age: 12+y,18+

Package Includes: Original Box

Origin: Mainland China

Model Number: TinyAPE

Material: Carbon Fiber

Indoor/Outdoor Use: Outdoor

Features: App-Controlled

Controller Mode: MODE2

Controller Battery: 2

Control Channels: 6 Channel

Camera Mount Type: Other

Aerial Photography: Yes

Tiny Ape Freestyle is the first 2.5” drone from Darwinfpv.In order to meet the needs of more friends and we have made multiple attempts. It comes with theDarwin ELRS2.0 F411 15A Bluejay AIO and the VTX006 which has 25-600mW output power.

Configuration:

Brand:DarwinFPV

	TinyAPE	Tiny Ape Freestyle
Weight	50.3g (without batteries and paddles)	50.3g (without batteries and paddles)
Propeller	Genfan 2512 3-blade propeller	Genfan 2512 3-blade propeller
FC&ESC	F411 2S 15A FC (Built-in ELRS 2.4G receiver)	F411 2S 15A FC (Built-in ELRS 2.4G receiver)
Built-in Receiver Protocol	SPI protocol	SPI protocol
Motor	1103 8000KV Brushless Motor	1103 8000KV Brushless Motor
Camera	Run Cam Nano 4	Run Cam Nano 4
VTX	25-600mW VTX	25-600mW VTX
AIO Firmware	betaflight_4.3.0_BETAFPVF4SX1280	betaflight_4.3.0_BETAFPVF4SX1280
ESC Firmware	Bluejay_S_H_50_48_v0.14	Bluejay_S_H_50_48_v0.14
Recommended Battery	2S 380-450mah (Not Included)	2S 380-450mah (Not Included)
RunCam Thumb Camera	WithoutRunCam Thumb Camera	WithRunCam Thumb Camera

Factory AIO firmware just only supportELRS_V1.0if you want to use it with theELRS V2.0versionTX Module and you can programming

Betaflight V4.3.0 RC1-RC3.The name of the firmware isBETAFPVF4SX1280.

Run Cam Nano 4 Camera

The Run Cam Nano 4 uses a 1/3” CMOS sensor, 2.1mm lens and 800TVL resolution for truer colors and clearer low-light night vision.

1103 8000KV Brushless motor

1103 8000KV Brushless motor is only 3.7g and its power and thrust are surprising, and the flight time is achieved? Minutes. We have notice: the motor only supports 2S batteries, and if it is connected to 3S to push the throttle too much the motor will be permanently damaged .

	380mah3S	450mah2S
Landing voltage	9.75V	6.5V
VTX Power	400mW	400mW
Hover Time	8.25min	8.18min

VTX
VTX006has25-600mWoutputpowerandcanprovidestableimagesandpowerfultransmission.Youcanchoosetheperfectoutput

poweraccording toyouFPVrequirements.(ThedefaultsettingoftheoutputpowerforTinyApeis400mW)

Red light flashes frequency	Power
1	25mW
2	200mW
3	400mW
4	600mW

FlightControl(FC)
ThisisanupdatedversionofDarwinAIO.WeintegratedtheELRSreceiverontheFCtomakeiteasiertoapplytominidrones.TheESC

adoptsBluejayfirmware,compatiblewith1-3SLipoinput,15Acontinuouscurrentand17Apeakcurrent.FCprovides2sets ofUarts

interfaces,and also providesvariousexternaldeviceinterfacessuchasSBUS,Softserial,CTR,BUZZ,RGB,etc., whichperfectlysolvesthe

problemofinsufficient numberofF411Uarts.

Thebuilt-inreceiverisanSPIprotocolreceiver,soyouneedtoselectSPIreceiversupport(SPIRXsupport)inthebetaflightconfigurator.

Undernormalcircumstances,thecheckboxonthebetaflightconfiguratorreceiverisempty.Ifthebetaflightconfiguratorusedis10.8.0andabove,thecheckboxshouldselect”EXPRESSLRS”.Asshownbelow.
