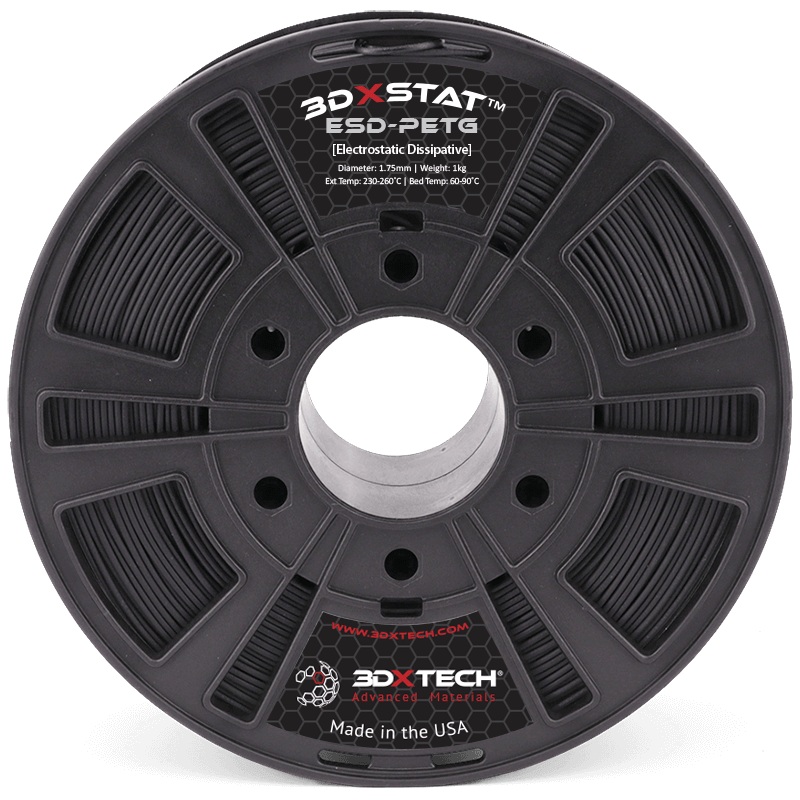

3DXTech ESD-PETG Filament 1.75mm

Description

Are You Looking To Buy 3DXTech EZPC+CF (Polycarbonate Carbon Fibre) 1.75mm In Australia?

3DXSTAT ESD-PETG is an easy to use ESD-Safe filament formulated for a wide array of applications that require electrostatic discharge (ESD) protection and enhanced chemical resistance. Made using high flow PETG copolymer and CNTs to offer exceptional repeatability and reliability.

Benefits of PETG ESD Include:

• Superior chemical resistance vs. ABS
• Amorphous structure giving it low, near isotropic shrinkage
• Low moisture absorption, 3x lower than ABS
• Very low odor emitted while printing
• Superior ductility vs. ABS
• Wide processing range of 230-260C
• Consistent surface resistivity
• Improved retention of impact & elongation
• Low particulate contamination
• Minimal contribution to outgassing and ionic contamination

TECHNICAL DATA SHEET

ClickHEREto open this material’s TDS

SAFETY DATA SHEET

ClickHEREto open this material’s SDS

Filament Specifications:

1.75mm+/- 0.05mm in diameter

Chemical Resistance of PETG:

Unstressed tensile bars molded of PETGexhibit good resistance to dilute aqueous solutions of mineral acids, bases, salts, and soaps, and to aliphatic hydrocarbons, alcohols, and a variety of oils. Halogenated hydrocarbons, short chain length ketones, and aromatic hydrocarbons dissolve or swell the plastic.

Typical ESD-PETG Applications Include:

• Semi-con: HDD Components, Wafer Handling, Jigs, Casings, & Connectors
• Industrial: Conveying, Metering, and Sensing Applications

Target Conductivity for 3DXSTAT ESD-PETG:

• 10^7 to 10^9 ohm surface resistivity on 3DP sampleusing concentric ring test method.
• Note: Internal studies have indicated that increased extruder temperatures can achieve higher levels of conductivity. Likewise, lower extruder temperatures have resulted in lower levels of conductivity. Each printer is set-up differently as well as varied part geometry. Therefore, expect some trial time to understand how this filament works in your specific printer / application. However, please do not exceed 270C to reduce the risk of polymer degradation.

Surface Conductivity as a Function of Extruder Temperature:

The surface resistance of the printed ESD-safe part will vary depending on the printers extruder temperature. For example, if your testing indicates the part is too insulative, then increasing the extruder temperature will result in improved conductivity. Therefore, the surface resistance can be dialed-in by adjusting the extruder temperature up or down depending on the reading you receive on your part.
