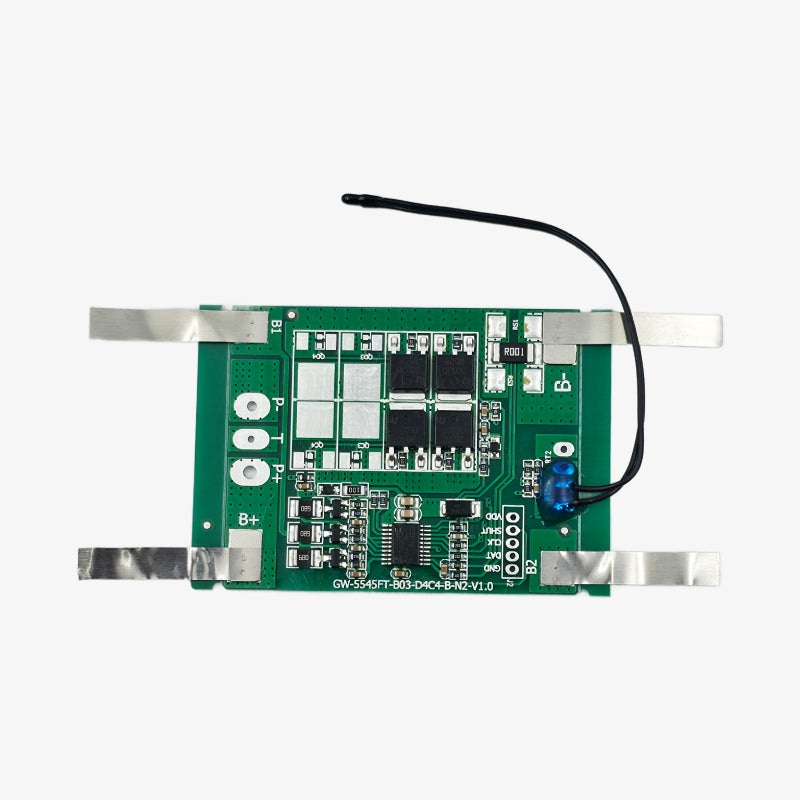

3S 10A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC cells

Description

The 3S 10A Battery Management System (BMS) Module is designed for 3.7V Lithium NMC cells, providing efficient protection and management for battery packs. With built-in nickel strips, it simplifies assembly while ensuring safe and reliable operation.

Features

• 3-Series Configuration: Supports 3-cell (3S) battery packs.
• Overcharge Protection: Prevents cells from exceeding the maximum voltage limit.
• Overdischarge Protection: Ensures cells do not drop below the safe voltage range.
• Overcurrent Protection: Safeguards the battery pack from high current surges.
• Short-Circuit Protection: Prevents damage from accidental short circuits.
• Balance Charging: Ensures even charging across all cells for extended lifespan.
• Nickel Strips Included: Simplifies the connection and assembly process.

Specifications

• Maximum Continuous Discharge Current: 10A
• Input Voltage: 12.6V (for 3S packs)
• Cell Type: 3.7V Lithium NMC cells
• Protection Functions: Overcharge, overdischarge, overcurrent, and short-circuit protection
• Dimensions: Compact and lightweight design

Package Contents:

1 x 3S 10A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC cells
