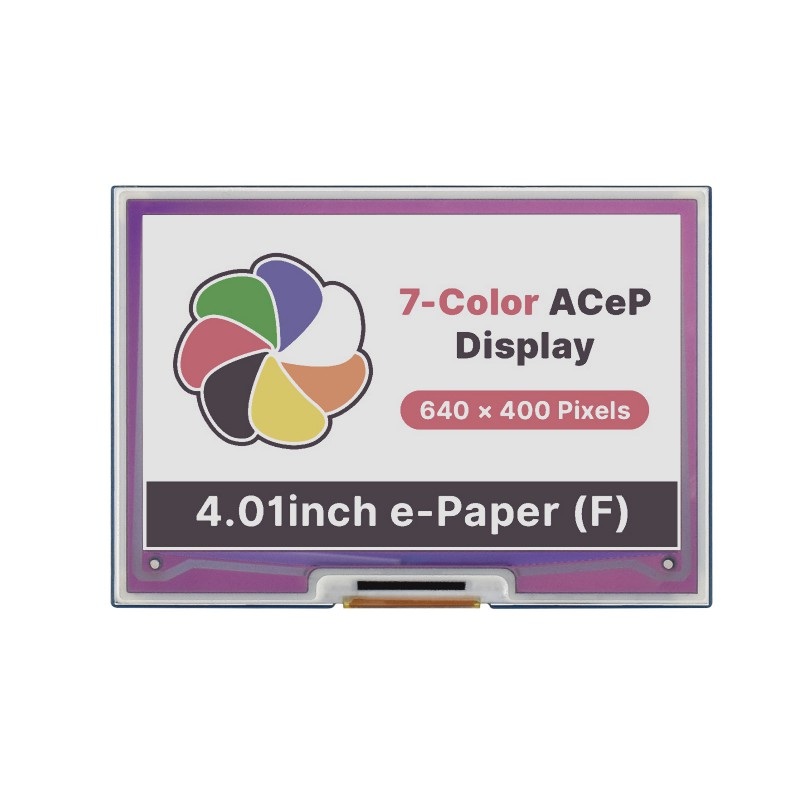

4.01inch ACeP 7-Color E-Paper E-Ink Display HAT for Raspberry Pi, 640400 Pixels

4.01inch ACeP 7-Color E-Paper E-Ink Display HAT for Raspberry Pi, 640400 Pixels

Original price was: $100.00.Current price is: $50.00.

SKU: UIFU260216214 Category:

Description

Features

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (driver board schematic diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE 3.3V/5V DISPLAY COLOR ACeP 7-Color
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 98.50 70.00mm FULL REFRESH TIME 15s
DISPLAY SIZE 86.40 54.00mm REFRESH POWER 50mW(typ.)
DOT PITCH 0.135 0.135mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 640 400 pixels VIEWING ANGLE >170

Advantages Of E-INK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180 viewing angle. It is usually used as e-reader due to its paper-like effect.
