Description

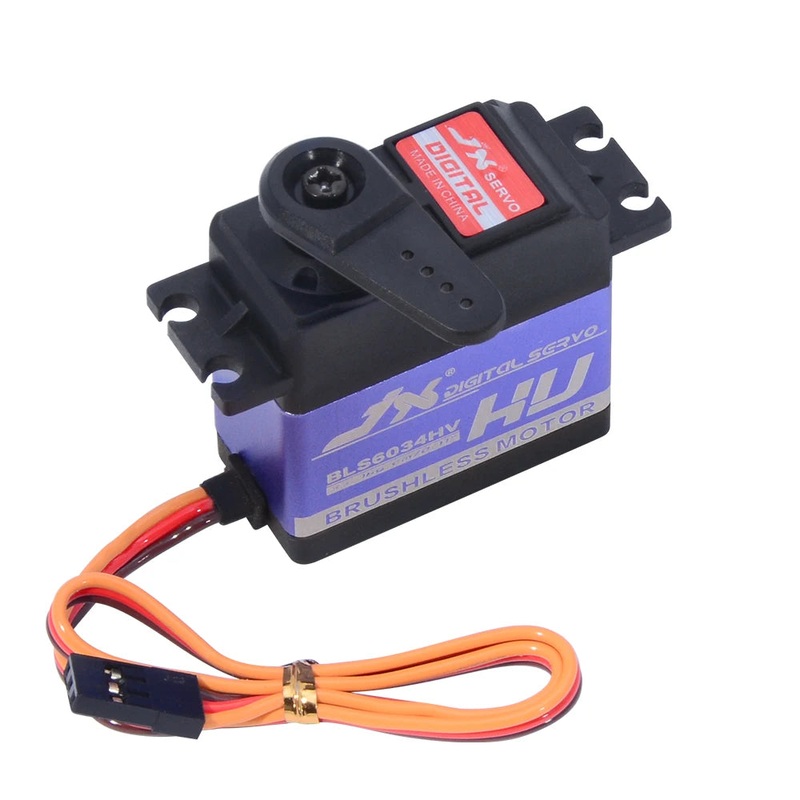

JX Servo BLS6034HV – 7.4V 33kg Servo SPECIFICATIONS

Brand Name: JX

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Servos

Size: 40.5X20.5X40mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: Value 5

Model Number: BLS6034HV

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Gear Teeth: 25T

Control Angle: 120 Degree

Factory supply Huge stocks, Support wholesale

FEATURE

—–CNC metal On the cover In the shell

—–High-precision Taiwan-made aluminium gears with hard anodizing

—–High Voltage Brushless Digital Servo

SPECIFICATIONS

Dead band 1s

Working frequence 1520s / 330hz

Motor Brushless

Operating Speed6.6v 0.13 sec/60

Operating Speed7.4v 0.11 sec/60

Stall Torque 6.6v 26.7 kg.cm

Stall Torque 7.4v 33.7 kg.cm

Dimensions 40.5X20.5X40mm

Gear Teeth:25T

Control Angle:120 Degree

Weight 60 g

Wire/Color JR 265 mm/ -Brown +Red S Orange

Bearing 2BB

Package includes:

4pcs x JX BLS6034HV

40.5mm 40.5 DIGITOLSCRvO BLSBOBAHV KW 255mm BRUSHLESS MOToR 1J 4 pldta ELeeoeAHV ScavO KW BRUSHLE ESS MoToR .
