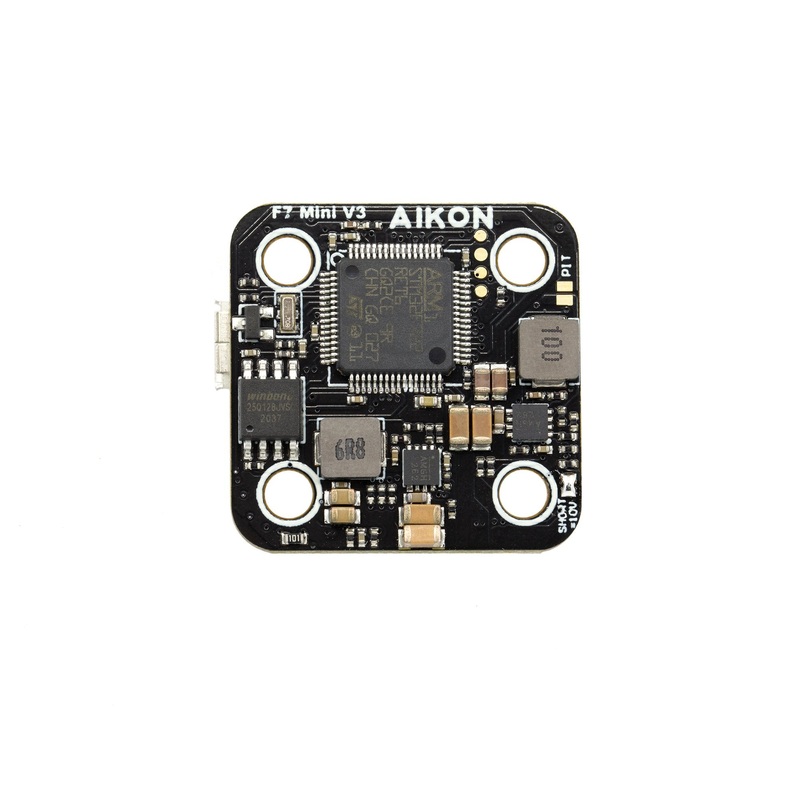

Aikon F7 Mini HD 20×20 V3 Flight Controller

Description

The Aikon flight controller is a new generation flight controller designed specifically to work with Aikon 4-in-1 ESCs.They’vepacked all the greatest features including HD compatibility into one seamless flight experience. Also featuring DJI Plug and Play, but still compatible with Betaflight OSD if used for Analog!

Check out all our 20x20mm Flight Controllersand the rest of ourAikon Products!

WHAT MAKES THE AIKON F7 AMAZING?

• 216mhz F7 processor
• 5 Software invertable hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch
• LED outputs
• Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
• On-board voltage regulator up to 6S

SPECIFICATIONS:

• MCU: STM32F722RET6
• Gyro: ICM42688P
• Flash: 16Mb on board
• OSD: AT7456E
• Input: 12-50V (3-6 Cell Lipo)
• Bec: 5V@2A
• Firmware: AIKON F7
• Size(mm): 30x30x5
• Weight(g): 5.4

Features:

• STM32F77RET6 MCU
• MPU6000 Gyro
• DJI Air Unit Port: YES
• Built in OSD (AT7456)
• Built in 16mb Flash for DATA logging
• Wide range of voltage input (50V)
• 5 UARTS
• VTX Switch
• Cam controller
• l2c LED-STRIP, BUZZER, ESC5, ESC6, PPM, RSS

Package Includes:

• 1 x Aikon F7 Mini HD 20×20 V3 Flight Controller – (MPU6000)
