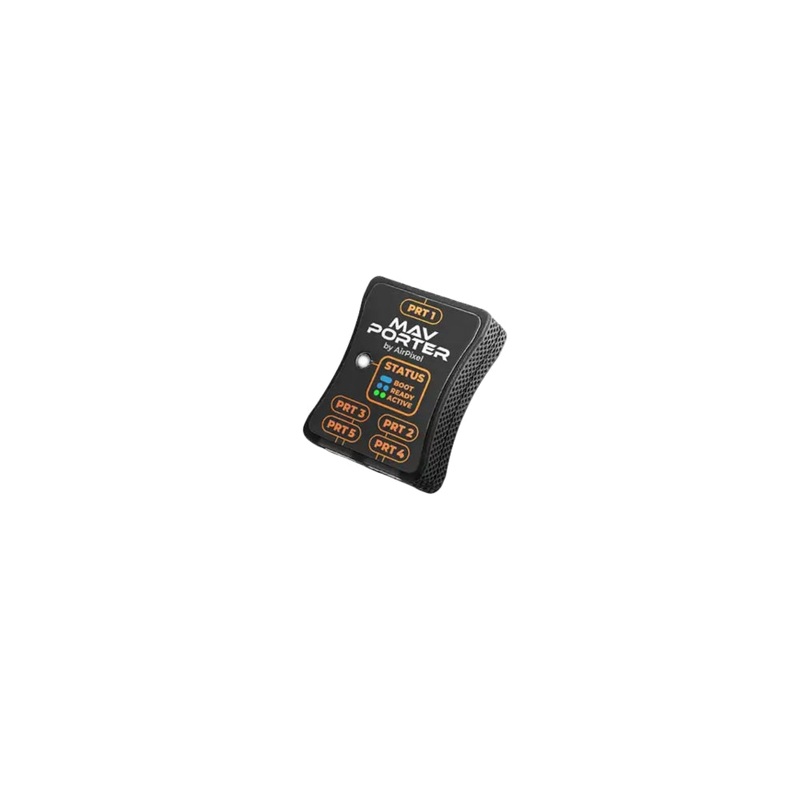

AirPixel MavPorter-MAVLink Routing Device

Description

• MavPorter is a MAVLink routing device designed to replicate a single serial (telemetry) MAVLink port into four new ports with configurable baud rates and routing features.

• By default, MavPorter is configured to function as a 5-port MAVLink hub, forwarding all data from each port to every other port.

• You can configure your MavPorter to deny forwarding between specific ports or limit the frequency of forwarding for certain message IDs.

• Configuration is done via parameter protocol from your QGC or MissionPlanner.

• Firmware updates are done via MavLink from our update application for PC.More details atproduct page.

Dimensions: 28*22*9 mm
Weight: 5g

Set contains:
MavPorter unit
2x Cube connection cable (JST SH -> JST GH)
3x UNI cable (JST SH -> JST SH)

MavPorter is also compatible with the ENTIRE and can do special tricks when ENTIRE is connected to the system, like:

• Tunnel AIR Commander Link data via MavLink
• Tunnel DJI API data via MavLink
• Tunnel NMEA data from and to the ENTIRE via MavLink
• Tunnel ERB (EMLID) data via MavLink
• Tunnel SBUS via MavLink
