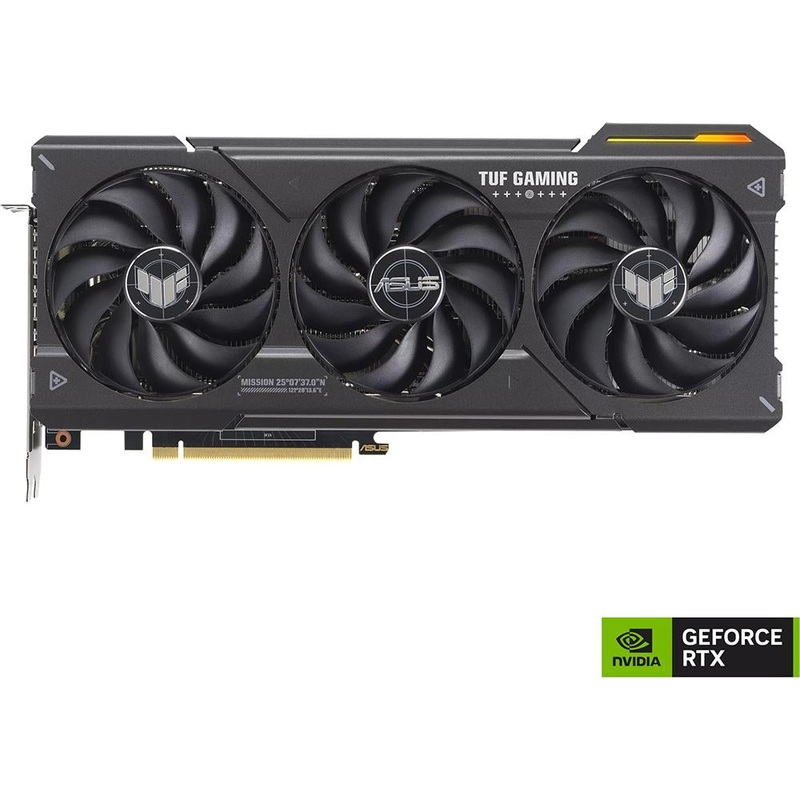

ASUS TUF Gaming GeForce RTX 4070 Super OC Graphics Card – TUF-RTX4070S-O12G-GA

Description

Armed For Flow

NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery; and backed with an arsenal of rugged reinforcements to cover your six. Lock; load; and dominate with the TUF Gaming GeForce RTX 4070 SUPER.

Axial-Tech Upgrades

Air Superiority: Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card; setting the stage for lower temperatures; less noise; and higher performance.

New Direction

Well-maintained Formation: The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius; letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius; referencing a speed curve that balances performance and acoustics for work or play.

3.15-Slot Design

Phase That Blaze: A generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4070 SUPER GPU so that it can be whisked away by the three Axial-tech fans.

Military-Grade 20K Capacitors

Resilient Squadron: A lineup of capacitors rated to last 20;000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail; arming the card for long-term deployment in challenging conditions.

Vented Exoskeleton

Stay Frosty: The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.

Auto-Extreme Technology

Reliability Boost: Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals; resulting in less environmental impact; lower manufacturing power consumption; and a more reliable product overall.

Aura Sync

Light ’em Up: Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

Graphics Card Holder

Pillar of Support: The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard; and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology; automatic profile swapping; a fully customizable on-screen display; and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account; and QuantumCloud also supports multiple exchange methods; including Steam. In addition; QuantumCloud doesn’t collect any personal data; so your privacy stays protected. Get started right away with just one click!

Pair with a PSU

Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG; TUF Gaming or Prime PSU forultimate performance.

Free 1 Month of Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products.

20+ Adobe apps: Industry-leading apps including Photoshop; Illustrator; InDesign; Spark and XD.

Adobe Fonts: Access thousands of fonts right within your Creative Cloud apps.

Behance: Find inspiration in the world’s largest creative community.

Creative Cloud Libraries: Your team can share assets across their apps and devices; so everyone’s in sync.

1TB of cloud storage per user: Extra storage makes it easier for your team to share and manage creative assets.

Max FPS. Max Quality. Powered by AI.

DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs; DLSS 3 uses AI to create additional frames and improve image quality.

Further With AI; Faster on RTX

Discover the RTX AI advantage. Built for the era of AI; GeForce RTX GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming; the ultimate in AI power on Windows PCs is on RTX.

Product Features:

• Powered by NVIDIA DLSS3; ultra-efficient Ada Lovelace arch; and full ray tracing
• 4th Generation Tensor Cores – Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores – Up to 2X ray tracing performance
• Axial-tech fansscaled up for 21% more airflow
• Dual ball fan bearingslast up to twice as long as conventional designs
• Military-grade capacitorsrated for 20K hours at 105C make the GPU power rail more durable
• Vented exoskeletonadds structural rigidity and vents to increase heat reliability
• Auto-Extremeprecision automated manufacturing for higher reliability
• GPU Tweak IIIsoftware provides intuitive performance tweaking; thermal controls; and system monitoring

Specifications:

• Graphic Engine: NVIDIA GeForce RTX 4070 SUPER
• Bus Standard: PCI Express 4.0
• OpenGL: OpenGL 4.6
• Video Memory: 12GB GDDR6X
• Engine Clock:
• OC mode: 2595 MHz (Boost Clock)
• Default mode: 2565 MHz (Boost Clock)
• CUDA Core: 7168
• Memory Speed: 21 Gbps
• Memory Interface: 192-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
• Yes x 1 (Native HDMI 2.1a)
• Yes x 3 (Native DisplayPort 1.4a)
• HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Recommended PSU: 750W
• Power Connectors: 1 x 16-pin
• Slot: 3.15 Slot
• AURA SYNC: ARGB
• Dimensions (W x D x H): 301 x 139 x 63 mm/11.85 x 5.47 x 2.48 in.
• Item Weight: 1.19 kg
