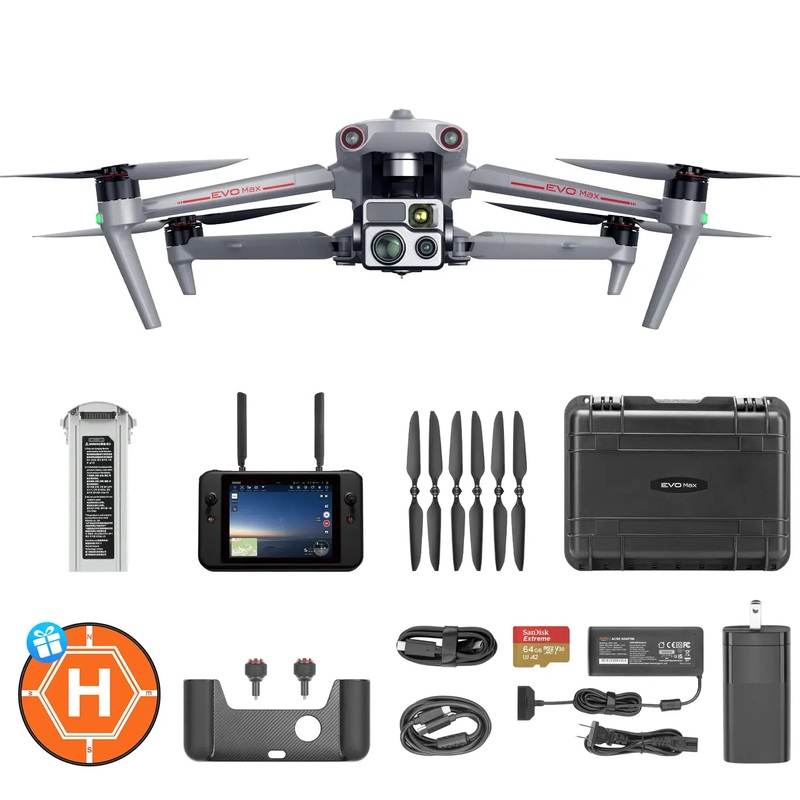

Autel Robotics EVO Max 4T V2

Description

• 10X Optical Zoom
• Thermal Camera:640×512 | 16x Digital Zoom
• Wide Camera: 50MP | 1/1.28″ CMOS
• Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
• Laser Rangefinder
• Autel SkyLink 3.0 | 12.4 miles Transmission Range
• 720 Obstacle Avoidance
• 42 mins Max Flight Time
• A-Mesh 1.0 | Mesh Networking Technology
• 3D Map Planning | Multiple Mission Types | Data Security
• Multi-channel Projection Screen*
• Autel SDK

[keyfeatures]

• Overview
• Specification
• Packing
• Documents

• Autel EVO Max 4T V2

  Autel EVO Max 4T V2 brings powerful technologies and advanced autonomy to users. EVO Max 4T V2 assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, Autel EVO Max 4T is as portable as it is capable.

  • 15s
    Take Off
  • 8K 10x
    Optical Zoom
  • IP43
    Weather Rating
  • Hot-Swappable
    Batteries
  • Navigation
    In GPS Denied Environments
  • 12.4 miles
    Transmission Range
  • 42 Minutes
    Flight Time
  • 720
    Obstacle Avoidance

  • Autel Autonomy

    EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systemswith millimeter wave radar technology. This allows Autel EVO Max 4T V2’s onboard Autel AutonomyEngine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation inlow light or rainy conditions.

    • Binocular Vision System
    • Millimeter Wave Radar
  • Autel EVOAutel EVO Max 4T Millimeter Wave Radar
  • • Autonomous Path Finding

      Autel EVO Max 4T’s Autonomy Engine collects surrounding environmental data and plans 3D flight pathsthrough complex environments such as mountains, forests, and buildings. Use casesinclude rapid 3D scene reconstruction, public safety overwatch, industrial inspection,and land surveying.
  • • Navigation in GPS Denied Environment

      Advanced sensors allow Autel EVO Max 4T V2 to navigate within hardened structures,underground, or in environments without GPS.
  • • Accurate Object Identification andTracking

      Based on Autel’s AI recognition technology, Autel EVO Max 4T V2 can automatically identifyand lock onto different types of targets such as heat sources, moving people, orvehicles and achieve high-altitude tracking and data collection for law enforcement.

  No Blind Spots

  Ultimate Obstacle Avoidance

  EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems with millimeterwave radar technology. This allows Autel EVO Max 4T’s onboard Autel Autonomy Engine to perceive objectsdown to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

  Autel EVO Max 4T Drone Dynamic Track 2.1

  • Anti Jam, Anti Interference

    Autel EVO Max 4T V2 uses advanced flight control modules and algorithms specially designed tocounter RFI, EMI, and GPS spoofing. This enables Autel EVO Max 4T to fly confidently near powerlines, critical structures, and in complex areas.

  • Autel EVONano Drone Dynamic Track 2.1

  • Weather Rating-IP43

    Autel EVO Max 4T V2 with IP43 Ingress Protection rating, it means Max 4T is protected againstsolid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 to 122

  • Weather Rating-IP43

    Autel EVO Max 4T with IP43 Ingress Protection rating, it means Autel Max 4T is protected againstsolid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 to 122

  4T V2 Mission Ready Payload

  Autel Max 4T V2 gimbal camera system combines a wide-angle camera, zoom camera, thermal camera, and a laserrangefinder, offering a comprehensive solution for data capture across a variety of environments. Thisversatile payload is designed to excel in multiple application scenarios, enabling precise decision-makingand ensuring optimal performance under diverse conditions.

  Thermal CameraLaser RangefinderWide Angle CameraZoom Camera

  • 640*512 resolution
  • 9.1 mm focal length
  • 16x digital zoom
  • Range: -4 to 1.22
  • Temperature accuracy: 2 or reading 2
  • Measuring Rnage: 5-1200m(16.4-3737 ft)
  • Measurement Accuracy: (1m+D*0.15%) *where D is the distance to a vertical reflecting plane
  • 1/1.2″ CMOS, 48MP
  • Equivalent: 24mm
  • Aperture: f/2.8
  • DFOV: 83.4
  • 1/1.2″ CMOS, 48MP
  • Apeature: f/2.8-f/4.8
  • 10x Optical Zoom
  • 160x Max. Hybird Zoom
  • Video Resolution:4000*3000 30fps
  • Phote Size: 4000*3000, 8000*6000

  Chase the Heat and Explore the Night

  • • Autel EVO Max 4T Dynamic Track

    • Super Zoom

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of upto 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuringthe safety of personnel and flight equipment. This efficient capability empowersapplications in energy inspections, emergency rescue, and public safety and securityindustries.

  • • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching upto 64000. Even in moonlight conditions, it can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusiontechnology, ensuring delicate and clear photos in low-light environments.

    • Autel EVO Max 4T Dynamic Track

    • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching upto 64000. Even in moonlight conditions, EVO Max 4T can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusiontechnology, ensuring delicate and clear photos in low-light environments.

  • • Autel EVO Max 4T Dynamic Track

    • Superior Infrared

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of upto 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuringthe safety of personnel and flight equipment. This efficient capability empowersapplications in energy inspections, emergency rescue, and public safety and securityindustries.

  • • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with amaximum ranging distance of up to 1.2 kilometers.

    • Autel EVO Max 4T Dynamic Track

    • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with amaximum ranging distance of up to 1.2 kilometers.

  Platform Capability

  EVO Max 4T V2 redefines portability with its robust performance and all-weather design, making it the idealchoice for versatile aerial operations. Autel EVO Max 4T boasts an impressive 42 minutes of maximum flight time, a tophorizontal speed of 23 m/s, and an image transmission range of up to 12.4 miles.

  • 42 minsMax. Flight Time
  • 23m/sMax. Horizontal Speed
  • 12.4 milesImage Transmission Range
  • 27 mph*Max. Wind Resistance

  Hot-Swappable Battery

  Autel EVO Max 4T hot-swappable battery system, which allows for extended flight times without the need fordowntime. This system allows users to easily swap out batteries while the drone is still in operation,making it ideal for use in time-critical applications where every second counts.

  • • 8070 mAhCapacity
    • 14.88VVoltage
    • LiPo 4SBattery Type
    • 120whEnergy
    • 520gNet Weight
    • SupportHot Swap

  Autel EVO Max 4T Dynamic Track

  A-Mesh Networking Solution

  Autel EVO Max 4T V2 introduces the innovative A-Mesh system, enabling seamless drone-to-drone autonomouscommunication, connection, and collaboration. Unlike traditional communication chains, the system ensurescontinuous data relay, even if a single drone fails or disconnects, thanks to its strong anti-interferencecapabilities.

  Autel EVO Max 4T Dynamic Track

  • Zonal operations

    Autel EVO Max 4T V2 supports dual-drone dual-control to achieve zonal operations of aircraft,improving flight work efficiency. EVO Max 4T also supports mutual obstacle avoidance among drones withinthe network, ensuring flight operation safety.

  • Information sharing

    The two remote controllers within the network can simultaneously monitor the aircraft footage.The AI target recognition feature used in the lead controller can also be displayed on themember controller. Additionally, both controllers can utilize the pinpoint positioning feature.

  • Relay operations

    In scenarios with signal obstructions or weak signals such as crossing hills or remote areas, theaircraft can be quickly deployed as a mobile relay communication node, providing reliable signalsupport for another member aircraft at a distance, efficiently expanding the communicationcoverage area.

  Autel SkyLink 3.0

  Autel Max 4T SkyLink 3.0 system is a highly advanced drone communication technology, offering impressivespecifications for enhanced flight performance. Here’s a summary of its key features:

  • 12.4 milesImage Transmission Distance
  • <150 msLatency
  • 1080p/60fpsReal-Time Image Quality
  • 900MHz/2.4GHz/5.2GHz/5.8GHz**Frequency Bands

  This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions.900MHz is only applicable for FCC regions.

  Autel Enterprise App Platform

  The Autel Enterprise App is built from the ground up for industrial applications and features a brand-newinterface for simple, efficient operation. Additional features and semi-autonomous modes maximize Autel EVOMax 4T V2’s mission capability.

  Smart Features

  • • 3D Map PlanningPlan, create, and execute 3D waypoint mission plan on a 3D map.
    • 3D Map PlanningPlan, create, and execute 3D waypoint mission plan on a 3D map.
  • • Quick Mission*Temporary quick missions can be created while executing other missions, andmultiple sub-missions can be stacked for enhanced flexibility.
    • Quick Mission*Temporary quick missions can be created while executing other missions, andmultiple sub-missions can be stacked for enhanced flexibility.
  • • Mission Reproduction*With this feature activated, fly a manual or semi-autonomous mission, or stringmultiple missions together. Autel EVO Max 4T will automatically record the camera anglesand replicate the mission you just flew.
    • Mission Reproduction*With this feature activated, fly a manual or semi-autonomous mission, or stringmultiple missions together. Autel EVO Max 4T will automatically record the camera anglesand replicate the mission you just flew.

  Multiple Mission Types

  The Enterprise App provides various autonomous and semi autonomous mission planning for public safety,inspection, and surveying.

  • Automatic Mission Generation And Data Capture*

    Automatically produce routes by adding regional boundary points through dots or importing KMLfiles

  • Polygon Mission

    Supports one-click automatic generation of polygon flight areas <

  • Waypoint Missions

    Users can add waypointsfor flexible, non-structured flight paths

  Data Security

  Privacy Protection: Data involving user and aircraft information, including flight logs, locations, andaccount information can only be physically accessed via the aircraft locally.

  Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, arepassword-protected.

  Autel SDK

  The Autel SDK is open to the world, helping developers and partners re
