Description

SPECIFICATIONS

Brand Name: vifly

Is Electric: Other Battery

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Model Number: AVATA 3.5 Upgrade Frame Kit

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

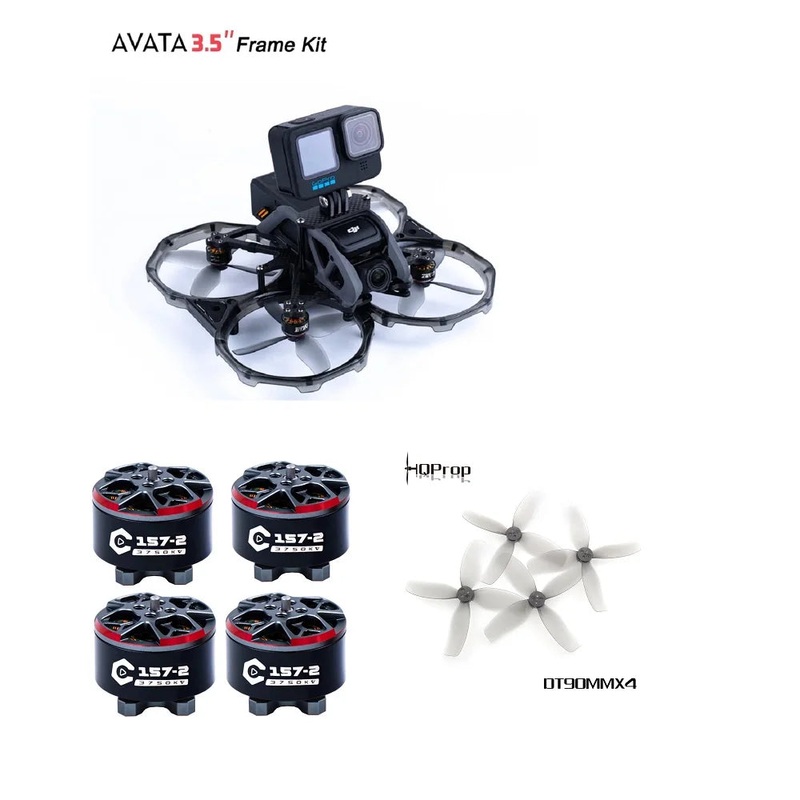

1, Axisflying AVATA 3.5″ upgraded based on DJI original AVATA to unleash the full potential .

– More Powerful

– Easy to take off with GoPro

– No thumble problem

2, AVATA3.5″ setup:

– Motor: C157-2/3750KV

– Props (T-MOUNT style) : HQ DT90MM*4 or other 3.5″ Props

– Axisflying C35 Guards

>>The frame kit includes HQ DT90MM*4 props. But you can try different props

For example HQ DT90MM*5 propsExperiments have shown a finer noise reduction and a higher thrust than DT90MMX4. This is an effect that not only I but also other users have experienced.

3, AVATA3.5″ testing report:

– Carrying GoPro , cruising flight time is about 10’30”

– Carrying GoPro 10, freestyle time is about 5mins

– Without GoPro, cruising flight time is about 14’30”

– Without GoPro, freestyle time is about 6mins

With FPV trending in cinematic and commercial filming, weAxisflyingare very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

– C157 motor upgrades for DJI AVATA to get better flying feel. It is more power, better maneuverability and less prop wash than stock motor.

*Bearing Shield Technology

-An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 3650KV @4S with DJI AVATA props

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 1507

– Motor mounting hole size: 3*M2 (10mm)

– Motor cables: AWG 24#, 100MM

– Motor dimensions (Dia *Len): 19*18.9MM

– Motor weight (including 150MM cables) : 14.5g

– The motor is very powerful that can get over 0.6KG and most current is about 25A

Type: T2.9X2.5X5 update for DJI Avata

Szie : 2.9″

Pitch: 2.5″

Blades5

Material: PC

Weight2.2G

Thickness: 5.3mm
