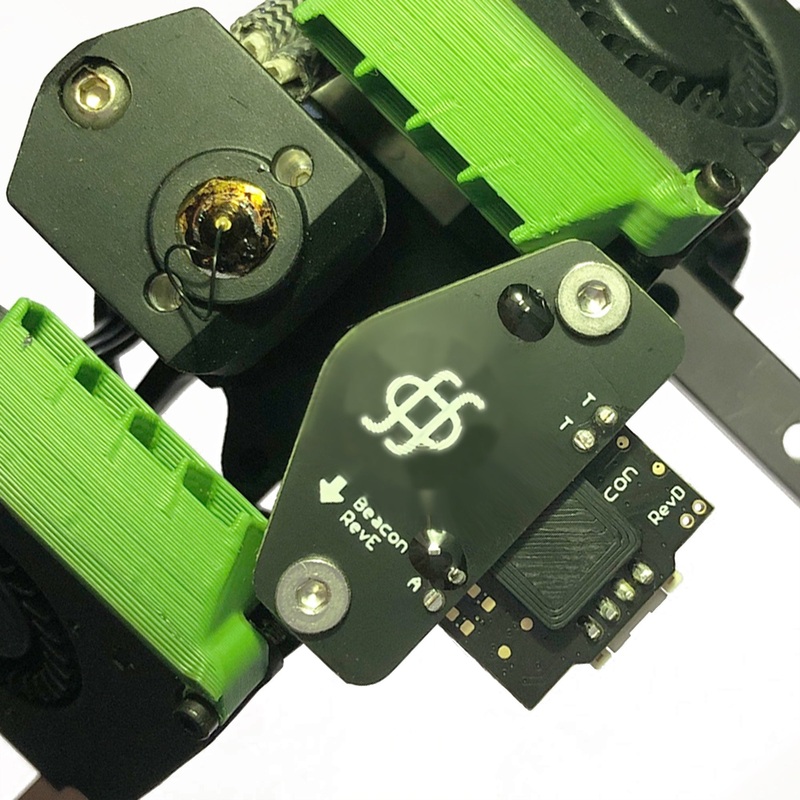

Beacon Scanner – 3D Printer Homing & Surface Scanner REV H

Description

Are you looking to buy a Beacon 3D Printer Homing & Surface Scanner in Australia?

The latest updated version of Beacon REV H is available with a new form-factor, 15% higher sensitivity, 40% less thermal drift, and an on-board accelerometer!

Eddy current displacement sensor for homing and surface scanning in 3D printers.

Works exclusively withKlipper. Comes fully assembled and includes a USB cable.

WARNING:Requires a conductive surface or substrate on printer bed to work. Bed stacks that include oversized fixed magnets are not recommended andmay not workwith Beacon.

Eddy current surface scanner for 3D printers:

• Native displacement output no z motion necessary for sensing
• Scan mode mesh dense grid sampling in a matter of seconds
• Low thermal drift minimized by design, active compensation for everything else

Printer Compatibility:

• Firmware: Klipper
• Connection: USB to Single Board Computer
• Bed: Conductive surface or substrate, 400um or thicker. Bare steel, WHAM BAM, PEI coated or laminated steel, etc. Use with beds employing large or oversized fixed magnets is not recommended.

Includes:

• 1x Custom USB cable (6ft)
• 1x Beacon board (main PCB, sensing PCB, headers, cable connector)

Variations this is important for mounting Beacon to your tool head appropriately:

• Normal: main PCB and sensing PCB are assembled flat
• Low Profile: main PCB and sensing PCB are assembled flat (as well as the cable connector)
• Right Angle: main PCB and sensing PCB are assembled at 90 degrees to each other
• Unassembled: all the parts come unassembled (instructions)

Warranty:

• 60-day standard warranty
