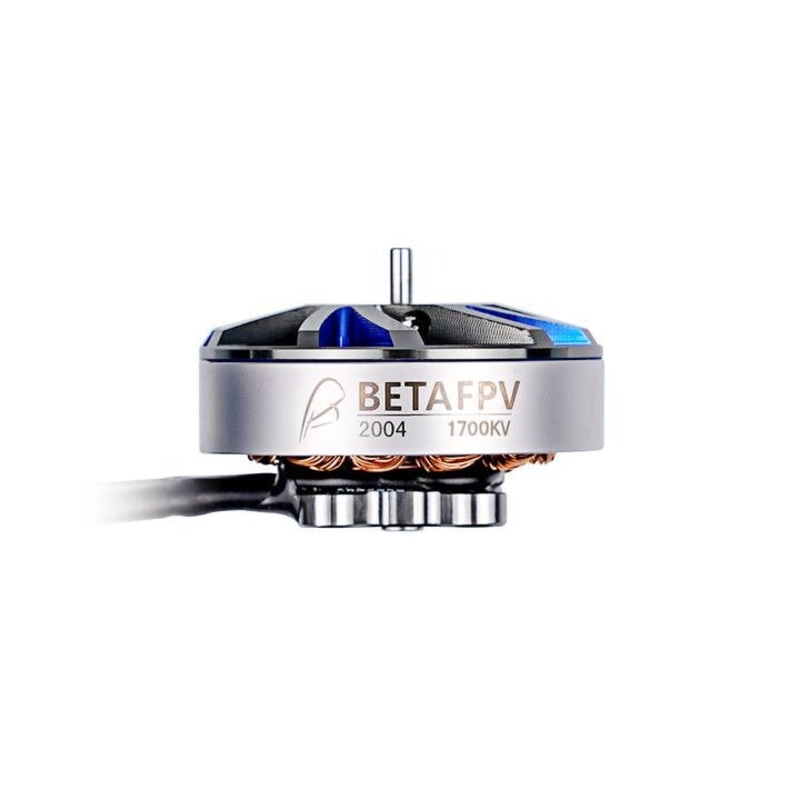

BetaFPV 2004 1700kv Brushless Motors

Description

BETAFPV 2004 series brushless motor is a smooth-running, powerful, and more controllableultralight4-6S motor, It is only 16.6g/pc.2004 3000KV is specifically designed for the 3 ducted whoop, 4 drone and 5 light blade and low general AUW for 5, and the 1700KV is the best choice for the 6S power system greatly suit for a 4-5inch quadcopter.We highly recommend pilots using 2004 motors with35A AIO Brushless FC/ F405+35A ESC and 5025/5125 props to build your drones, It will bring you a strong power to fly more flexible and durable.

Bullet Point

• BETAFPV 2004 brushless motor is a completely new, innovative and unique design that delivers performance sincerely better than what’s currently available. The motor delivers power in an entirely new way and will give you some of the SMOOTHEST FLIGHTS and FOOTAGE you’ve ever experienced!
• 3000KV is anultralight4S motor thatis specifically designed for the 3 ducted whoop, 4 anything and Light Load 5 Drone,and 1700KV is the best choice to build a6S drone. Both of them only weight 16.6g/pc.
• This newly designed motor provides more torque while providing it in a much smoother manner! The special design not only makes your motors look like “DUBS” on a car but also gives the drone amazing performance and flight feel.
• 2004 motors are perfectly suitable for the 4-5 inch drone, you will get strong power and stable flight. We highly recommend it forX-Knight5 Digital VTX,X-knight5andTWIG ET5.
• Attractive appearance design, 2004 brushless motor islike a tire, perfectly matching its powerful characteristics. This unique design allows for great surface area heat dissipation and stays much cooler than other motors.
• 2004 Brushless motor special offered an Anti-drop design, which has a peg in the hole of the shaft, prevents the motor from coming off, brings a better flight experience. Meanwhile, pls noticed that a little loose after hit is a normal phenomenon.

Specification

• Item: 2004 brushless motor
• Motor KV (rpm/V): 3000KV 1700KV
• Weight: 16.6g/1pc
• Color: Blue-Grey
• Shaft: 1.5mm
• Shaft length: 3.8mm
• Shaft diameter: 1.5mm
• Hole distance: 12mm
• Motor Mount Holes: M2
• Input Voltage: 3000KV for 4S / 1700KV for 6S
• Cables: 100mm long,24AWG cables
• Dimensions: 24.6*24.6*17.2mm

Recommended Parts for2004 3000KV Motors

2004 3000KV is specifically designed for following drones.

• 3″Ducted Whoop
• 4″ Everything
• 5″ Lightweight Toothpick

We highly recommend it forX-Knight 4” FPVandTWIG Mutant 4”.

• Flight Controller:F405 Flight Controller&35A BLHeli_32 ESC and35AAIO Brushless FC
• Compatible Propellers:Gemfan 5125 3-Blade propsand Gemfan 5020 props
• Battery:450mAh 4S batteryand850mAh 4S battery
• Frame: 4-5 inch Frame,highly recommendTWIG ET5 5” Toothpick Frame

Recommended Parts for2004 1700KV Motors

The 1700KV is the best choice for the 6S power system greatly suit for a 4-5inch quadcopter.

• 4 Everything
• 5 Lightweight Toothpick

Wehighly recommend it forX-Knight5 Digital VTX,X-knight5andTWIG ET5.

• Flight Controller:F405 Flight Controller&35A BLHeli_32ESC and35AAIO Brushless FC.
• Compatible Propellers:Gemfan 5125 3-Blade propsand Gemfan 5020 props
• Battery:550mAh 6S 75C battery
• Frame: 4-5 inch Frame,highly recommendTWIG ET5 5” Toothpick Frame

Meanwhile, we are using the 1700KV motor onX-Knight 5” Digital VTXToothpick Quad, it brings the droneinsane flight power! For more details of 1700KV motor, pls check ithere.

Package

• 1or 4 * 2004 3000KV or 1700KVBrushless Motors
• 1 * Pack of M2 Screws
