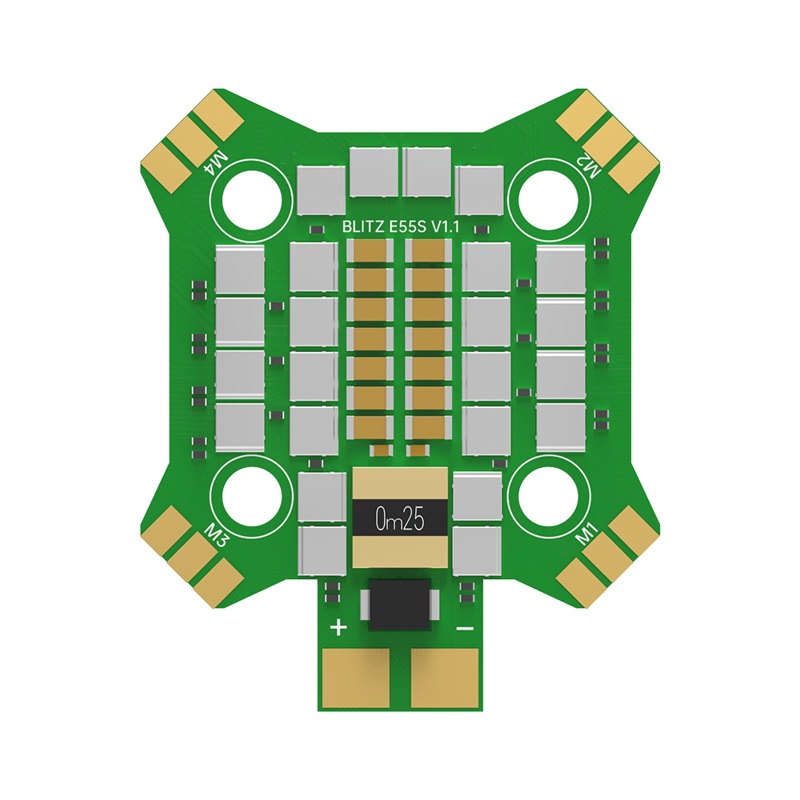

BLITZ Mini E55S 4in1 ESC

Description

The next generation of ESCs from iFlight has arrived. Compatible with BNF quads such as the Nazgul F5/F6 Series. These new 55Amp BLHeliS (BlueJay) BLITZ Mini 4in1 ESCs can handle even the most amp-hungry motors. Powerful 55A for 2-6S batteries. 20×20 mounting pattern. The perfect match for the BLITZ Flight Controller series.

Specifications:

Mounting Holes: 20*20mm/4mm

Weight: 11.3g

Supports 2-6S lipo input

MCU: BB21

Constant: 55 Amps

Burst: 65 Amps

Telemetry Output: No

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)

Packing List:

1 x BLITZ Mini E55S 4-IN-1 2-6S ESC

1 x Power cables & ESC signal wires
