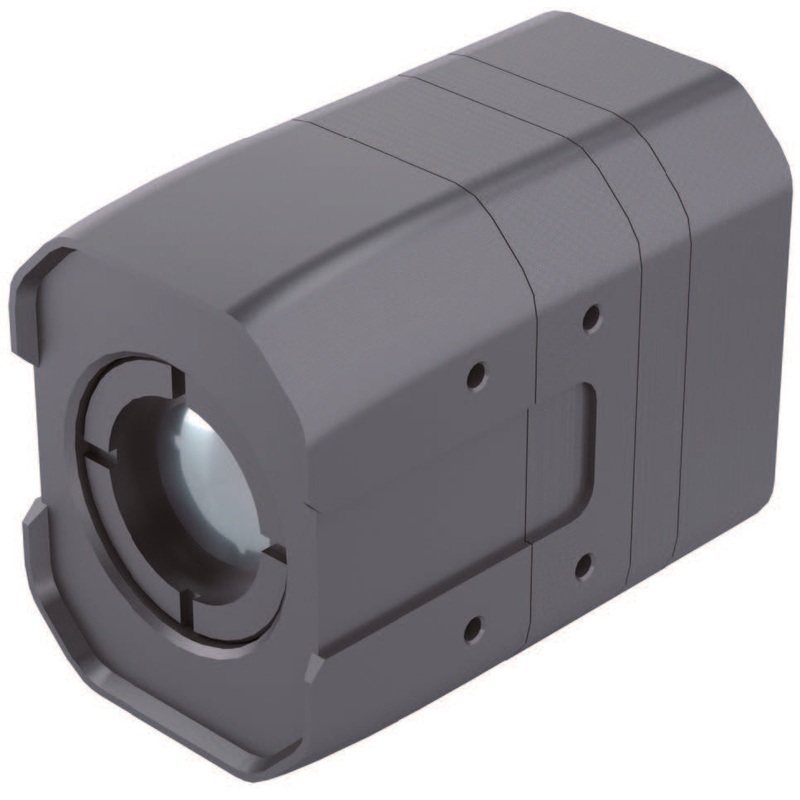

Caddx Eclipse 009CA Thermal Imaging Camera 960768 Resolution Pixelpump Stabilization UVC + Analog Dual Output

Description

Product Introduction

High-Resolution Thermal Imaging

• Up to 960768 thermal resolution

• Enhanced edge sharpness and fine detail

• Improved contrast between hot and cold areas

• Better long-range target detection and recognition

Pixelpump-Gen3 Image Stabilization

• Built-in Pixelpump-Gen3 stabilization algorithm

• Reduces minor motion blur and vibration during flight

• Maintains smooth and stable imaging during high-speed maneuvers

• Improves viewing comfort when mounted on drones or moving platforms

Dual Video Output: UVC + PAL

• PAL analog video output for traditional video transmitters or displays

• UVC (USB Video Class) digital output for PCs and embedded systems

  • Recognized as a standard USB camera by most operating systems

  • UVC output format: MJPEG

  • UVC resolution: 640512

• Analog and UVC outputs can be used at the same time, making setup and debugging easier

Interface Definition

Power / CVBS Interface

• Function: Power input + PAL analog video output (CVBS)

• Input voltage: DC 4.5V 24V

• Please ensure correct polarity to avoid damage.

ADKEY Interface (OSD Menu Board)

• Used to connect the OSD menu board

• Allows access to on-screen menus for:

  • Brightness, contrast, color palettes

  • Image rotation/mirroring

  • Other display settings

UVC Function

UVC Interface

• UVC (USB Video Class) digital video output

• Connects to PC or compatible devices via USB cable

• Recognized as a standard webcam for video preview and parameter tuning

• Output format: MJPEG, resolution 640512

OSD Function

OSD Menu & UVC Control

• Supports external OSD menu board (ADKEY):

  • Enter on-screen menu and adjust image parameters directly

  • Adjust brightness, contrast, color palettes (pseudo color), image flip, and more

  • Settings are saved in the camera even after the menu board is removed

• Supports UVC-based control for:

  • Brightness / Contrast (adjustable in defined steps)

  • Color palettes (multiple pseudo-color schemes)

  • Image mirroring / rotation (horizontal, vertical, angled)

  • Digital zoom (approx. 1.0 to 4.0)

The menu board provides an intuitive operation experience through the ADKEY interface: short press to
enter the menu, use the up and down keys to select functions, and the left and right keys to adjust
parameter values.
Adjustable parameters include contrast, brightness, pseudo color, image rotation, and image style, among
other display settings.

Specifications

Item	Specification
Model	Eclipse 009CA
Thermal Resolution	960 768 (Pixelpump)
UVC Resolution	640 512 (MJPEG)
Video Outputs	PAL analog video / UVC digital video (simultaneous)
Frame Rate	50 Hz
Focal Length	9.1 mm
Aperture	F1.0
Field of View	48.3 (H) 38.6 (V)
Input Voltage	DC 4.5 V 24 V
Typical Power	< 2 W
Interfaces	Power + CVBS, ADKEY (OSD), UVC
Stabilization	Pixelpump-Gen3 image stabilization
Operating Temp.	-20 C to +50 C
Dimensions	Approx. 35.2 26.2 46.4 mm
