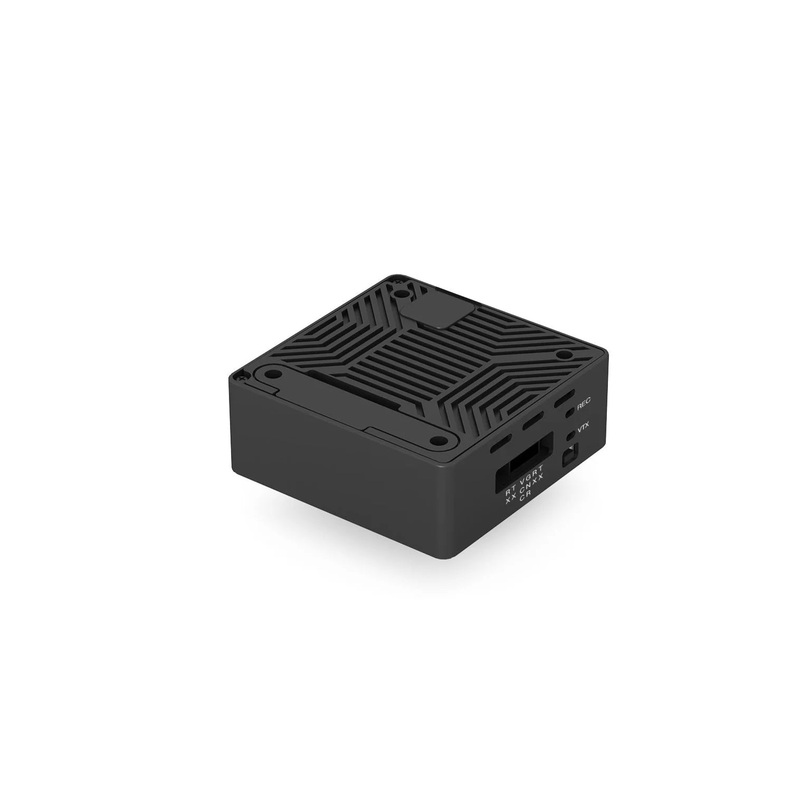

CADDX Walksnail Moonlight VTX WN01-FP004

Description

Specifications

• Model: Moonlight VTX
• Firmware name: AvatarMoonlight_Sky_X.X.X
• Communication Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP):
  • FCC:<30dBm;
  • CE:<14dBm;
  • SRRC:<20dBm;
  • MIC:<25dBm
• 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB), Micro SD card Slot; IPEX-1
• Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
• Max Mbps: 150Mbps
• Video format: MP4 (H.264)
• Wide Power Input: 7.4V-25.2V
• Power consumption: [email protected], [email protected]
• Memory card type: U3 MicroSD, Max 256G
• VTX size: 15.3mm*34.5mm*34.5mm
• VTX Installation hole distance: 20*20mm/25*25mm (M2)
• Weight: Gross weight: 38.5g(Antenna not included)
• OSD: Canvas mode
• Latency: Average delay 22ms
• Antenna: 2 (IPEX)
