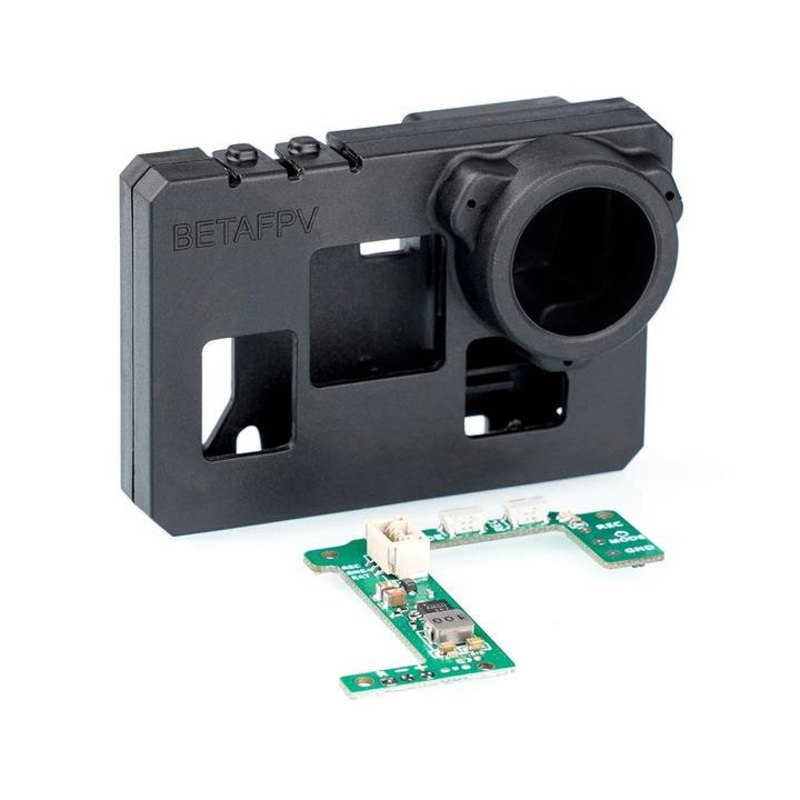

Case V2 for Naked Camera – with Bec Board

Description

Case V2 for Naked Camera is upgraded with a newinjection molding process and easier installation. Upgraded a better appearance design, it is more beautiful and clean. It is provided two different versions, more choice for different needed.If you already have has a GoPro HERO6/7, this is the best choice to make your naked camera to be super neat and light. Meanwhile, it can protect your camera motherboard well in a heavy crash. Expect that, we released a newND16filterfor Naked Cameratoo. Meanwhile, BETAFPV releasedBeta95XHD Digital VTX,Beta95XV2andBeta85X V2,supportsfor Naked Camera install, offering the best FPV film shootings needed.

This case and BEC board fit for GoPro HERO6 and GoPro HERO7 Black. But NOT for GoPro HERO8.

Many thanks forRichrd Pappand those people who devoted their time and energy to the cinewhoop researching. Thanks for the FPV community to gather such awesome ideas. If you wanna know more about cinewhoop, click the link below to join us on Facebook.

>>NAKED Cinewhoop Community

Bullet Point

• It changed the 3D printing process to the injection molding process, brings a better appearance design, which is more beautiful and clean.
• It provided anadapted lens position, perfect for the new ND16 filter, improving the video quality of Naked Camera.
• Easy for installation, more simple and convenient toassemble. It also increases a light pipe, pilots can see the flashing LED signs of the naked camera more clearly.
• The BEC version comes with a BEC Board, this board is specially designed for Naked GoPro HERO which weighs about 1.5g, makesyour naked GoProlighter and easier to install on yourdrone.
• Provided a case only version, perfect for those who already bought the BEC board, more choice for fans.

Specification

• Item: Case V2 for Naked Camera
• Weight: 6.57g
• Output: 5V@2A
• Voltage: 2-4S

How to Assemble

• Step 1: Assemble the BEC board on the GoPro motherboard.
• Step 2: Hold the camera lens and the camera board at the same time, be careful when you assemble the board on the case.
• Step 3, 4: Screw the GoPro motherboard with the M1.4*5 and M1.4*8screwsas shown below
• Step 5: Install the light pipe as shown below.
• Step 6: Install the back case, and screw the board withM1.4*8screwsas shown below.

ND16 Filter

ThisND16filterperfectly fits for the Case V2 for Naked Camera (Not including),not only protects the camera but also provides a better image.

Naked Camera Series

We know some of the pilots might have a question about which drone could install this new case. Here we providesome more choices for you.

• Beta95X V2 HD Digital VTX
• Beta95XV2 Whoop Drone
• Beta85X V2 Whoop Drone

Note:Case V2 for Naked Camerais not compatible with the previous camera mount, highly recommendedfor BETAFPVnew Pusher Kit. You will not only get 2 HD camera mount but also can modify your Beta85X & Beta95XtoBeta85X V2, Beta95X V2 or Beta95X V2(HD Digital VTX).

• Beta85X V2 Pusher Kit
• Beta95X V2 Pusher Kit

If you have a 3D printer, we also provide the STL files for the Naked Camera mount for you to replace the old version camera mount. Please check it onSTL files forPusher Whoop Drones.

How to DisassembleGoPro HERO6 Black

Special thanks toJONAH BLAESERwho provided the method ofdisassembling GoPro HERO6 Black. If you are interested, please check the link to know the specific steps to make your own naked GoPro.

GoPro HERO6 Black Disassembly Guide

In addition, thanks for the video ofCarreras de Drones, great help to disassemble the GoPro HERO6 and assemble the naked camera on Case V2.

We alsoprovided the method ofdisassembling GoPro HERO8 Black. If you are interested, please check the link.

GoPro HERO8 Black Disassembly Guide

Note:Do this at your own risk. You will lose your GoPros warranty and you may end up bricking thecamera if something goes wrong.This guide is not authorized by GoPro and your camera is not guaranteed to work afterward.BETAFPV will notbe held responsible for this action.

Package

• 1 * BEC Board for Naked Camera
• 1 * Case V2 for Naked Camera
• 1 * GH1.25 Power Cable (90mm 30AWG)
• 1 *Pack of Screws

or

• 1 * Case V2 for Naked Camera
• 1 *Pack of Screws
