Description

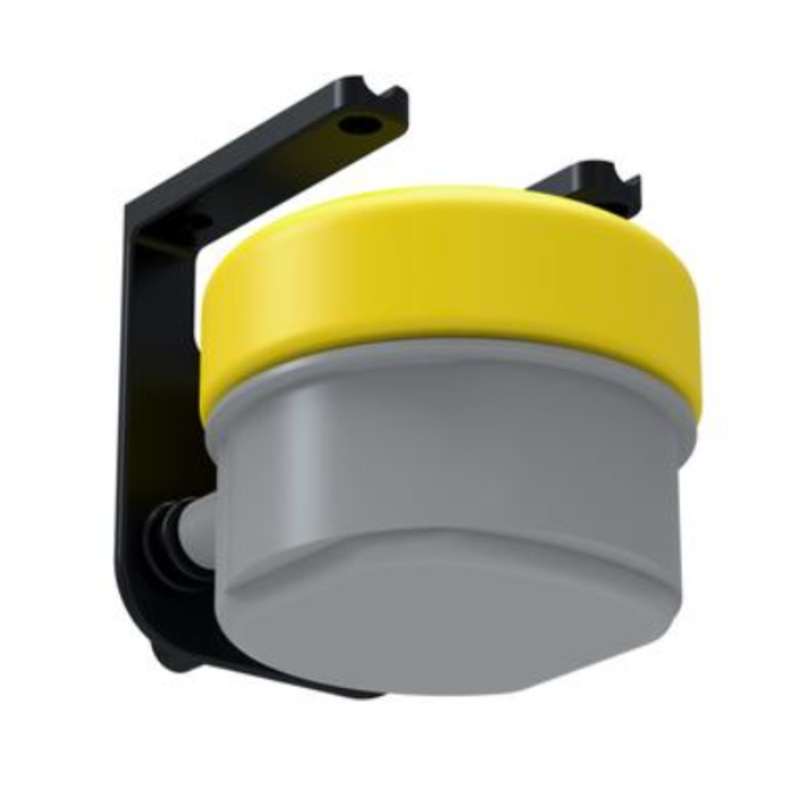

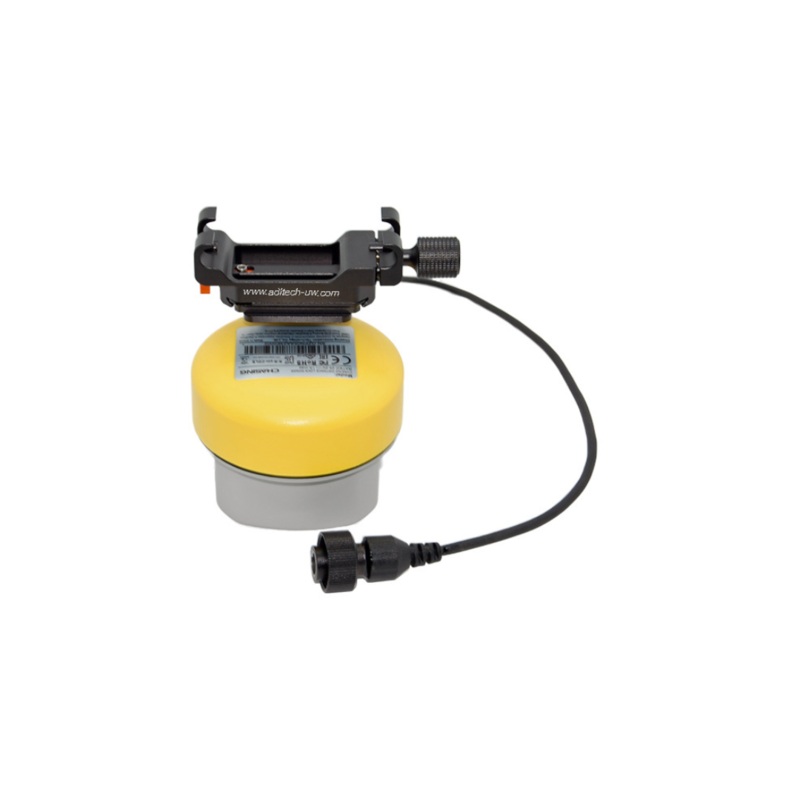

CHASING Distance Lock Sonar

CHASING Distance Lock Sonar is specially designed forCHASING M2 and CHASING M2 PRO ROV. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.

Lock the Distance in Four Directions Separately

The sonar can automatically calculate the distance between it and the obstacles in the front, left, right, and bottom of the ROV. After setting the distance to the obstacles on the App, ROV can perform automatic lock-distance inspection and automatic collision avoidance.

Efficient Automatic Inspection

In the lock-distance mode, the ROV can automatically inspect from top to bottom around the fishing nets or any column-shaped facilities, thereby reducing the difficulty of underwater operations and making various inspections more accurate and efficient.

Specifications

Range: 0.25m – 5m
Blind Spot: Less than 20 cm
Measurement Accuracy: 25mm
Resolution: 1 mm
Launch Angle: 13 2, 26 between axis-1 and axis-2
Power Supply: 10.8 VDC – 26.4 VDC (measurement range will vary depending on voltage)
Storage Temperature: -20 – 60 (non-frozen environment)
Probe Installation: Fixed installation
Protection Level: IP68
Sonar Installation: Base (default)64 64.8 79mm
Sonar Installation: Base (optional)64 64.8 153mm
Sonar Installation: Base Weight (default)54g
Sonar Installation: Base Weight (optional)108g
Maximum Diving Depth: 150 m
Size of Distance Lock Sonar Upper cover: 81.3 30mm, Housing: 79.3 55.9mm
Weight of Distance Lock Sonar: 286 5 g
Communication: TTL communication
