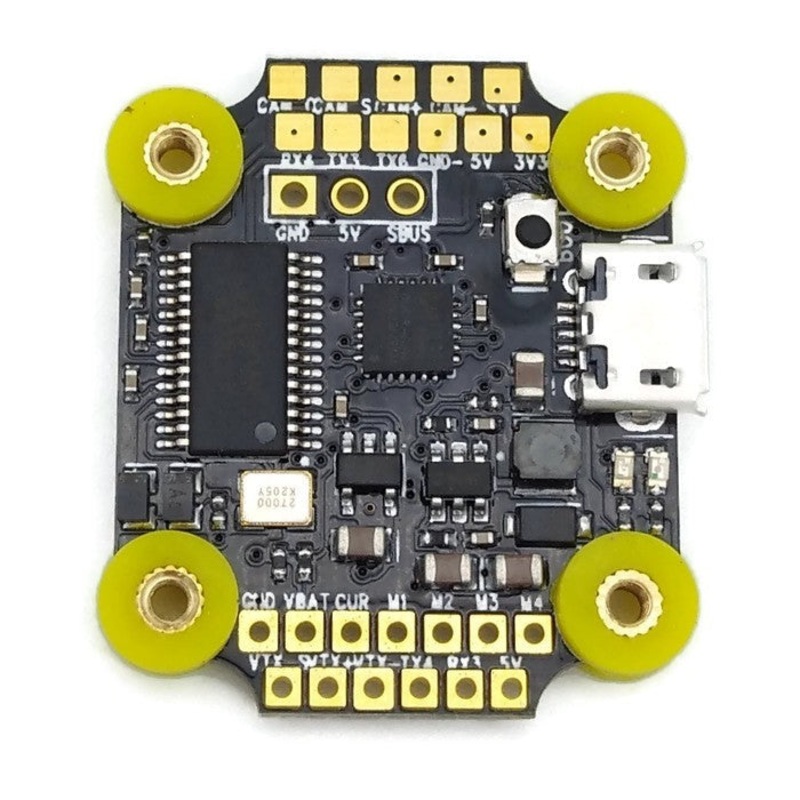

CL Racing F4 – Mini Flight Controller

Description

Enjoy the full size CL Racing FC lineup? Want to take a similar product into the world of brushless micros? Look no further than this 20x20mm option! It’s got everything you expect, including:

• Built in Betaflight OSD
• STM32F405 @168mhz
• Direct 2-6S input
• MPU6000 gyro
• Filtered 5V and 9V BEC’s
• Direct stack on Frsky xm+ rx
• 4 in 1 ESC socket and direct solder on 4 in 1 ESC pads.
• Build in Camera control resistor and capacitor
• Current sensor input solder pad
• Inverter for Sbus (on UART1),
• TX4(uart4) near VTX pads for easy smart audio or tramp wiring
• 4 UARTS —- TX6(uart6) SAT(uart6 RX ), RX4 ( uart4 ), RX3 TX3( UART3 )
• Direct solder 4 in 1 esc cable easy to adapt to all ESC
