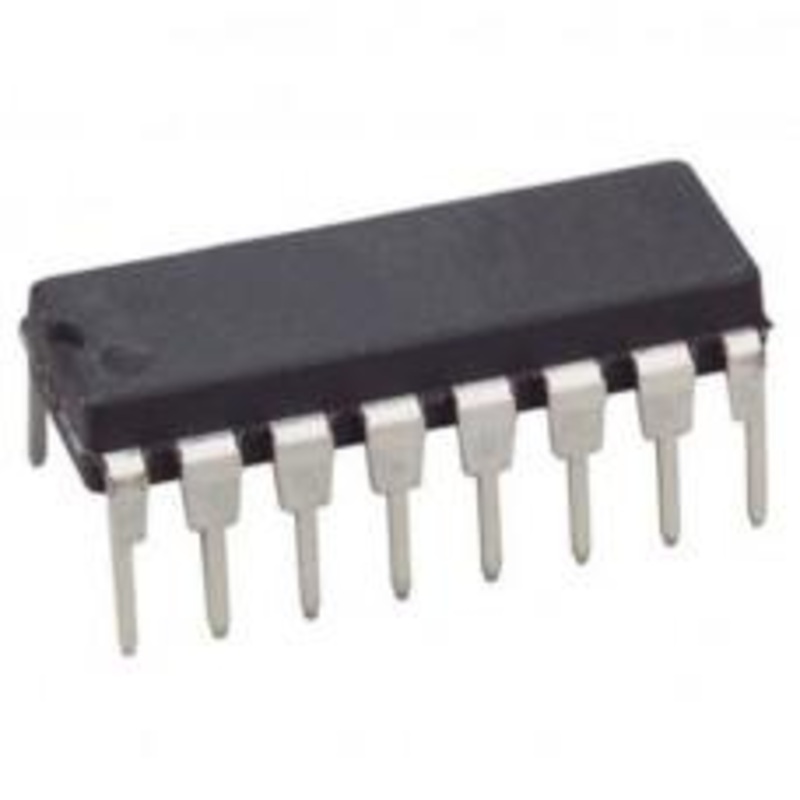

CMOS Hex Buffers/Converter IC – CD4009

Description

CMOS Hex Buffers/Converter IC – CD4009

CD4009 Hex Buffer/Converters may be used as CMOS to TTL or DTL logic-level converters or CMOS high-sink-current drivers.

The CD4009 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix).

check out :CMOS 8-Input NAND/AND Gate IC – CD4068

Applications:

• CMOS to DTL/TTL hex converter
• CMOS current “sink” or “source” driver
• CMOS high-to-low logic-level converter
• Multiplexer 1 to 6 or 6 to 1
