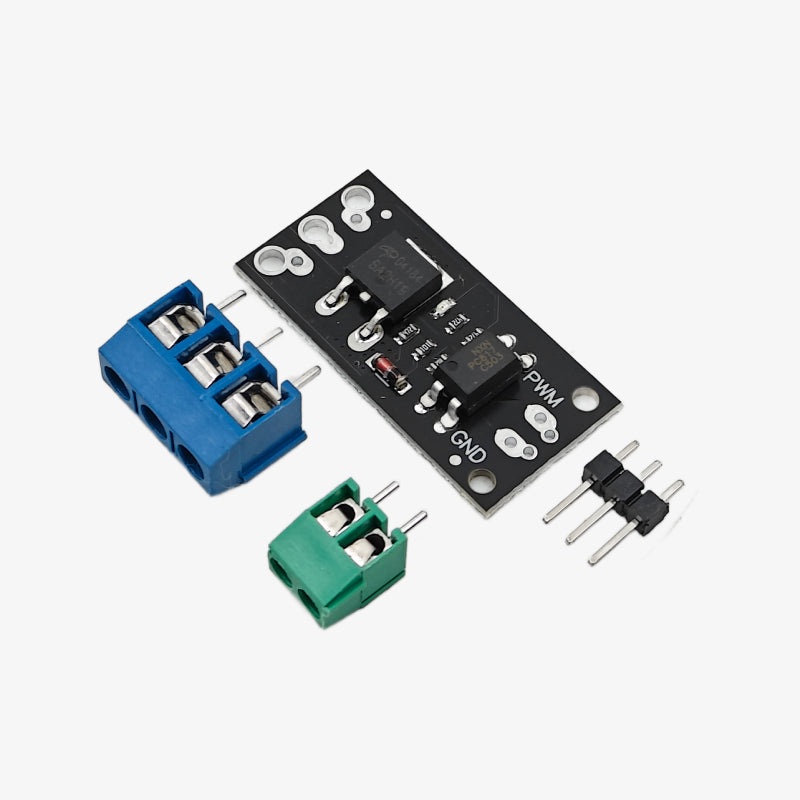

D4184 MOSFET Control Module for Relay Replacement

Description

TheD4184 MOSFET Control Module is a highly efficient solid-state switching module designed to replace traditional mechanical relays. It features a D4184 MOSFET, which enables fast and reliable switching for high-power loads with minimal heat dissipation. This module is ideal for motor control, LED dimming, heater control, and other DC switching applications.

Features of D4184 MOSFET Control Module:

1. Replaces mechanical relays with a more efficient MOSFET switch.
2. Supports PWM control, making it ideal for dimming and speed control applications.
3. Low on-resistance (Rds ON 5m) ensures minimal power loss.
4. Optocoupler isolation for safe and reliable operation.
5. Compatible with microcontrollers like Arduino, Raspberry Pi, and STM32.

Specifications of D4184 MOSFET Control Module:

• MOSFET Model: D4184
• Input Voltage (Control Signal): 3.3V – 20V DC
• Load Voltage: 5V – 36V DC
• Load Current: Up to 10A
• Trigger Signal: Low-level trigger
• Output Type: Open-drain MOSFET switch
• Dimensions: Compact and easy to integrate into circuits

Package Includes:

1 D4184 MOSFET Control Module
