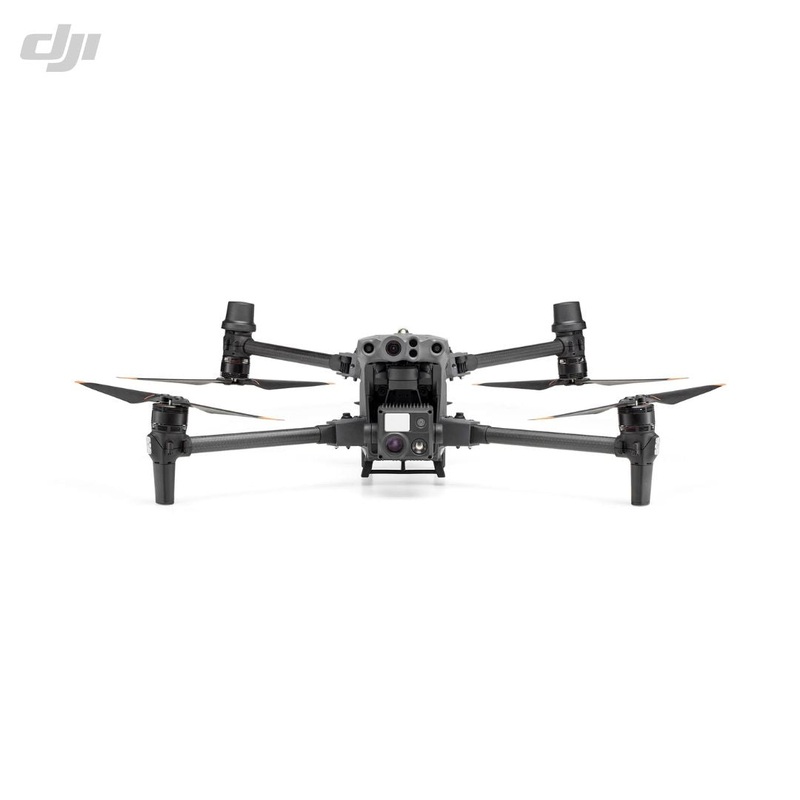

DJI MATRICE 30T

DJI MATRICE 30T

Original price was: $11.00.Current price is: $8.00.

SKU: F231444449 Category:

Description

The DJI Matrice 30T is a lightweight, portable, and rugged commercial drone designed to deliver higher operational efficiency. It can fly for up to 41 minutes and can bear adverse environmental conditions with IP55 protection rating. It features a 48MP zoom camera, a 84 FOV wide-angle camera, 640×512 Thermal camera and a laser rangefinder to provide superior image quality across variety of drone operations. It is also seamlessly compatible with the DJI Dock.

The Matrice 30T is a professional-grade drone that is designed for a variety of commercial applications, including security, inspections and search and rescue missions.

Specifications

Aircraft Details

Dimensions:

 (LWH): 470585215 mm (unfolded, excl. propellers) 365215195 mm (folded)

Weight:

 (incl. two batteries) 3780 g

MTOW:

 4069 g

Operation Frequency:

 2.4000-2.4835 GHz; 5.725-5.850 GHz

Transmitter Power:

 (EIRP) 2.4 GHz

Hovering Accuracy:

 Vertical 0.1 m (Vision System enabled); 0.5 m (N-mode with GPS); 0.1 m (RTK) | Horizontal 0.3 m (Vision System enabled); 1.5 m (N-mode with GPS); 0.1 m (RTK)

RTK Positioning Accuracy:

 1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)

Max Angular Velocity:

 Pitch 150/sec
Yaw 100/sec

Max Pitch Angle:

 35 (N-mode and Forward Vision System enabled: 25)

Max Ascent Speed:

 6 m/s

Max Descent Speed:

 5 m/s

Max Tilt Descent Speed:

 7 m/s

Max Horizontal Speed:

 23 m/s

Max Wind Resistance:

 12 m/s

Max Hover Time:

 36 minutes

Max Flight Time:

 41 minutes

Motor Model:

 3511

GNSS:

 GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)

Operating Temperature:

-20 to 50 C (-4 to 122 F)

Accessories

Zoom Camera

Sensor:

 1/2″ CMOS, Effective pixels 48M

Lens:

 Focal length 21-75 mm (equivalent 113-405 mm)
Aperture f/2.8-f/4.2
Focus 5 m to

Exposure Compensation:

 3 ev (using 1/3 ev as step length)

Electronic Shutter Speed:

 (Auto-Mode) Photo 1/8000-1/2 s
Video 1/8000-1/30 s

Electronic Shutter Speed:

 (Manual Mode) Photo 1/8000-8 s
Video 1/8000 -1/30 s

ISO Range:

 100-25600

Max Video Resolution:

 38402160

Max Photo Size:

 80006000

Wide Camera

Sensor:

 1/2″ CMOS, Effective pixels 12M

Lens:

 DFOV 84
Focal length 4.5 mm (equivalent 24 mm) Aperture f/2.8
Focus 1 m to

Exposure Compensation:

 3 ev (using 1/3 ev as step length)

Electronic Shutter Speed:

 (Auto-Mode) Photo 1/8000-1/2 s
Video 1/8000-1/30 s

Electronic Shutter Speed:

 (Manual Mode) Photo 1/8000-8 s
Video 1/8000-1/30 s

ISO Range:

 100-25600

Max Video Resolution:

 38402160

Photo Size:

 40003000

Thermal Camera

Thermal Imager:

 Uncooled VOx Microbolometer

Lens:

DFOV 61
Focal length 9.1 mm (equivalent 40 mm) Aperture f/1.0
Focus 5 m to

Sensitivity:

 30 [email protected]

Photo Size and Video Resolution:

 12801024 (Infrared Image Super-resolution Mode)
640512 (Normal Mode)

Temperature Measurement Method:

 Spot Meter, Area Measurement

Temperature Measurement Range:

 High Gain Mode -20 to 150 C (-4 to 302 F) Low Gain Mode 0 to 500 C (32 to 932 F)

Palette:

 White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

Resolution:

 19201080

DFOV:

 161

Frame Rate:

 30 fps

Laser Module

Wavelength:

 905 nm

Max Laser Power:

 3.5 mW

Single Pulse Width:

 6 ns

Measurement Accuracy:

 (0.2 m + D0.15%)
D is the distance to a vertical surface

Measuring Range:

 3-1,200 m (0.512 m vertical surface with 20% reflectivity)

Vision Systems

Obstacle Sensing Range:

 Forward 0.6-38 m Upward/Downward/Backward/Sideward 0.5-33 m

FOV:

 65 (H), 50 (V)

Operating Environment:

 Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

Obstacle Sensing Range:

 0.1 to 10 m

FOV:

 30

Operating Environment:

 Large, diffuse, and reflective obstacles (reflectivity >10%)

Auxiliary Lights

Effective Illumination Distance:

 5m

Illumination Type:

 60 Hz, solid glow

Remote Controller

Screen:

 7.02-inch LCD touchscreen, with a resolution of 19201200 pixels, and high brightness of 1200 cd/m2

Internal Battery:

 Li-ion (6500 mAh @ 7.2 V)
Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time is 2 hours
Chemical System is LiNiCoAIO2

External Battery:

 (WB37) Capacity 4920 mAh
Voltage 7.6 V
Battery Type Li-ion
Energy 37.39 Wh
Chemical System LiCoO2

Operating Time:

 Approx. 3 hours 18 min (Internal Battery) Approx. 6 hours (Internal Battery + External Battery)

GNSS:

 GPS+Galileo+BeiDou

Operating Temperature:

 -20 to 50 C (-4 to 122 F)

BS30 Intelligent Battery Station

Dimensions:

 (LxWxH): 353267148 mm

Net Weight:

 3.95 kg

Compatible Battery Type:

 TB30 Intelligent Flight Battery
WB37 Intelligent Battery

Input:

 100-240 VAC, 50/60 Hz

Output:

 TB30 Battery Port 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery 8.7 V, 6 A

Output Power:

 525 W

USB-C Port:

 Max. output power of 65 W

USB-A Port:

 Max. output power of 10 W (5 V, 2 A)

Power Consumption:

 (when not charging battery) 8 W

Output Power:

 (when warming up battery) Approx. 30 W

Operating Temperature:

 -20 to 40 C (-4 to 104 F)

Charging Time:

 Approx. 30 min (charging two TB30 batteries from 20% to 90%)
Approx. 50 min (charging two TB30 batteries from 0% to 100%)

In The Box

x1 RC Plus
x1 BS30
x1 Storage Case
