Dual 4-Input OR Gate IC – CD4072

Description

Dual 4-Input OR Gate IC – CD4072

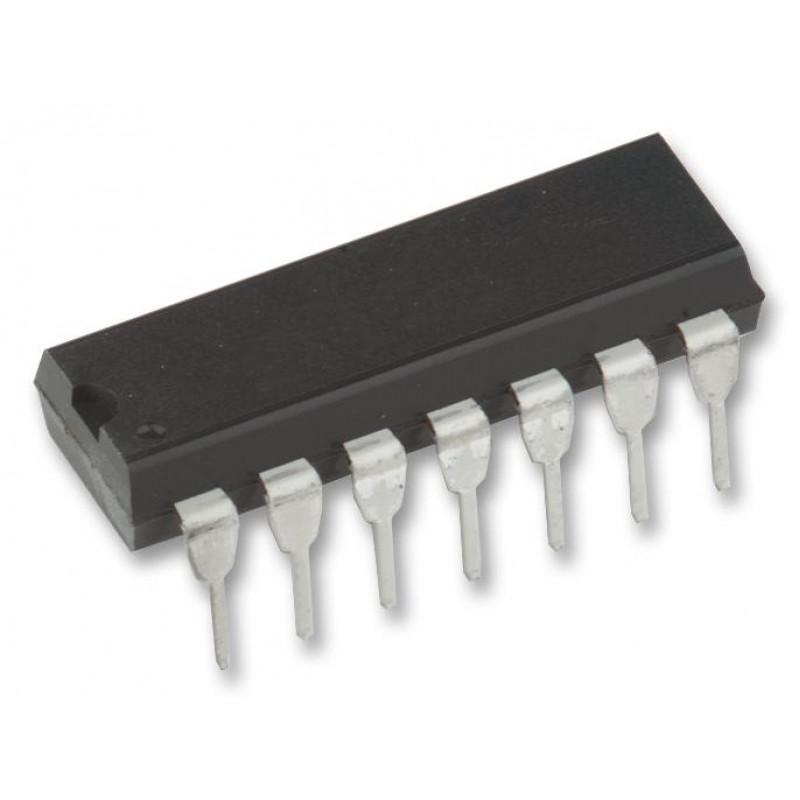

The CD4072 Dual 4-Input OR gates IC provides the system designer with direct implementation of the positive-logic OR function and supplements the existing family of CMOS gates. The CD4x Series CD4072 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

check out :CD40106 – Hex Schmitt Trigger Inverter IC

Pinout:

Pinout ofCD4072 Dual 4-Input OR gates IC
