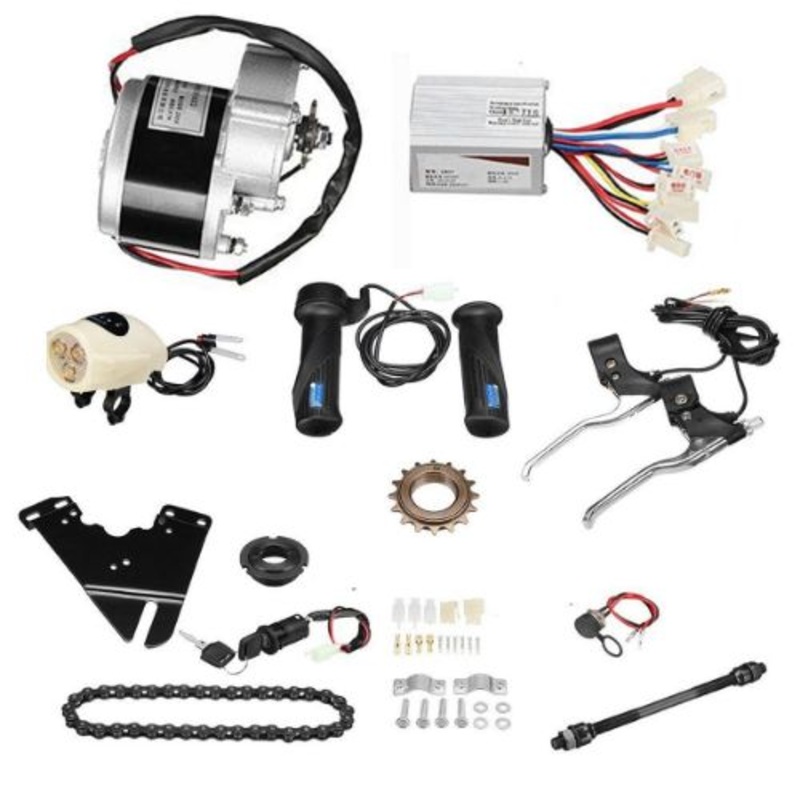

E-Bike MY1016Z3 24V 350W Motor DIY Electric Bicycle Kit

E-Bike MY1016Z3 24V 350W Motor DIY Electric Bicycle Kit

Original price was: $65.00.Current price is: $32.50.

SKU: W88706812085 Category:

Description

Category Parameter Specification
Motor Model MY1016Z3
Motor Type Brushed DC Geared Motor
Rated Voltage 24V DC
Rated Power 350W
Output Speed ~300 RPM
Rated Current ~19A
Gear Ratio ~9.78:1
Sprocket 9 Tooth (chain drive)
Torque High (geared output)
Application Chain-driven EV systems
Controller Controller Type Brushed DC Motor Controller
Rated Voltage 24V DC
Rated Power 350W
Max Current ~25A
Current Limit ~2533A
Control Method PWM
Throttle Input 1 4V
Under Voltage Protection ~20 20.5V
Brake Input Supported
Connections Motor, battery, throttle, brake, ignition
Cooling Aluminum casing
Throttle Type Throttle
Operating Voltage 5V (from controller)
Output Signal 1 4V
Control Range 0 100% speed
Mount Type Handlebar
Wiring 3-wire (VCC, GND, Signal)
Features Key switch* / battery indicator (optional)
