Description

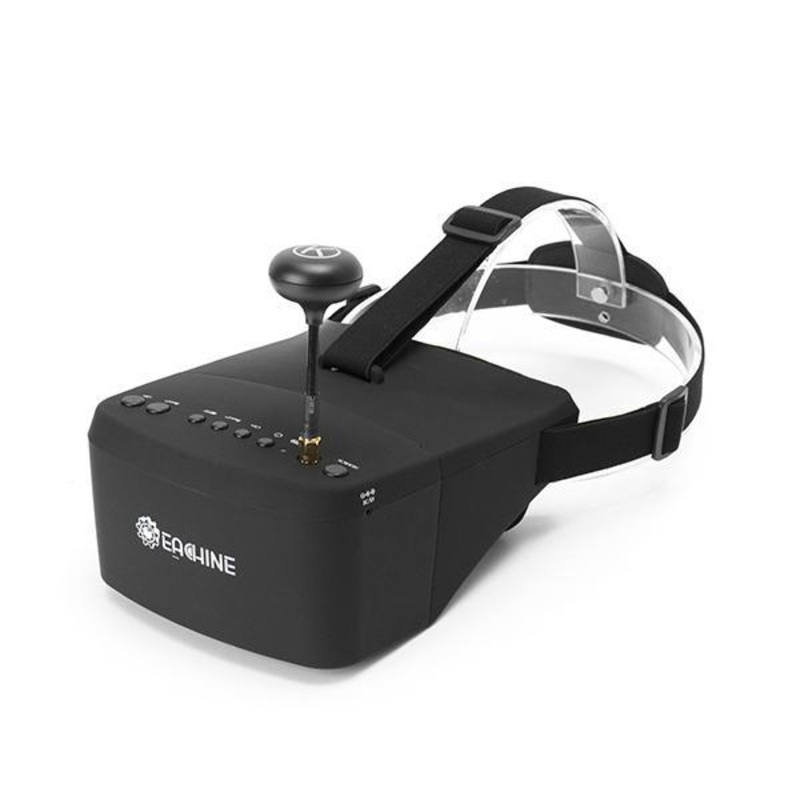

Eachine EV800 FPV Goggles 800×480 5 Inch 40 Channel Raceband Auto-Searching Build In Battery

Eachine EV800 5 Inches 800×480 FPV VR Goggles Monitor 5.8G 40CH Raceband Auto-Searching Build In 2000 mAh Battery Note: The goggles upgraded version with the face sponge and AV IN function. The Headphone jack was changed to 3.5mm. The total weight reduction of 26g.

Specification

Item No. EV800
Screen
Screen size: 5.0 inch
Screen resolution: 800*480 (No blur after enlarging by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 140/120 degree(Horizontal/Vertical)

Lens
3x boost of the video to acquire intense feel-in-there video;
92% transparent rate no distort of light;

Battery and recharge
Built-in 3.7V/2000mAh battery;
Each battery circle offer around 3.5hr working time;
5-12V wide recharging voltage range, typical recharging voltage is 5V
Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

Receiver
Build in 5.8G 40CH Raceband receive

Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
Body
Dimension: 180x145x82mm
Weight: 349g with 3.5hr 2000mAh battery
Belt: three-ways adjustable belt

Feature:

• With comfortable face sponge and AV IN function;
• Separabledesign,the 5-inchscreencanbeusedasa smallmonitorona radiocontrollerorwitha tripod;
• HDhighbrightness5inchLCDspeciallytunedforFPVracing;
• Built-insupersensitiveness5.8GHz40chreceiver,especiallywithRaceBand;
• Comewithadvancedauto-searchingfunctionandshowyoutheworkingfrequencyonthe screen;
• Built-in3.7V/2000mAhbattery,eachfullchargerevivearound3.5hoursworkingtime;
• Widerangere-chargevoltage5-12V,powerbanksor2S/3Sbatteriescanbeusedasbackuppowersour,toprolongtheworkingtime;
• The ergonomicdesignfityourfaces;
• Super-widevisibleangleupto82degrees;
• 92%transparentlensadopted,nodistort,noblurontheadageofthe screen;
• Lightweight375gwith3.5hr2000mAhbattery,RTFforanyscaleracinggame.
• 5inch800*480pxHDhighbrightnessLCD

Package Included:

• 1x EV800 FPV VR Goggles (Built-in3.7V/2000mAhbattery)
• 1x Mushroom Antenna
• 1x USB charger cable
• 1x Battery charger cable
• 1x AV IN cable
• 1x User Manual
• 1x Clean cloth
• 1x Bag
