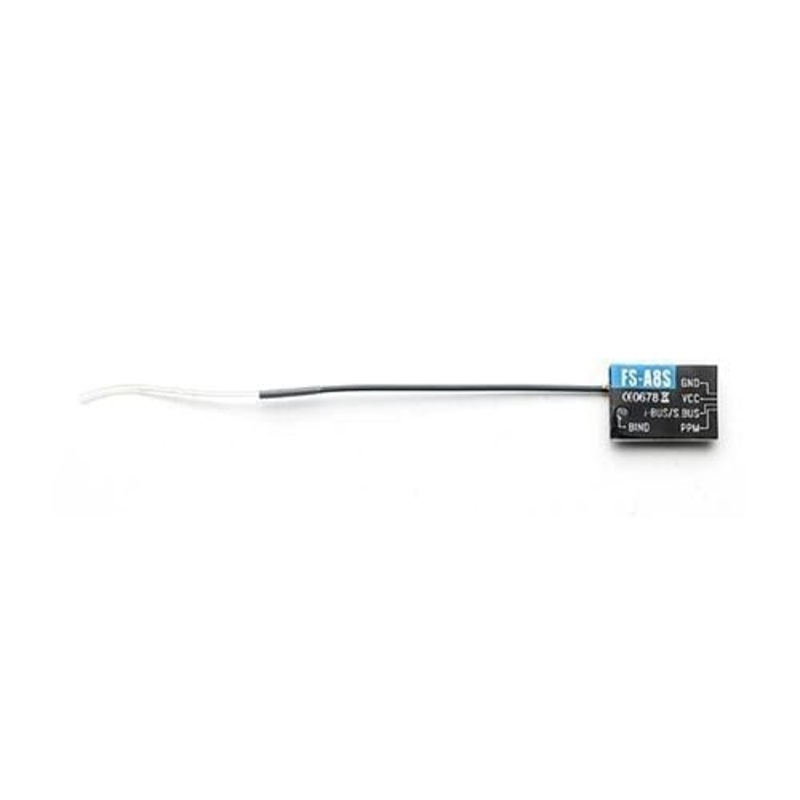

Flysky FS-A8S 2.4G 8CH Mini Receiver (V2) with PPM i-BUS SBUS Output

Description

The FS-A8S is a compact 1-way receiver from FlySky designed for multi-rotor aircraft. It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels.

This is version 2 of the mini receiver.

Specifications:

• Version 2
• Channels: PPM 8CH, i-BUS 18CH
• Frequency range: 2.408-2.475GHz
• Band width: 500KHz
• Band number: 135
• RX Sensitivity: -92 dBm
• 2.4GHz system: AFHDS 2A
• Modulation type: GFSK
• DSC port: PPM/i-BUS/S.BUS
• Transfer method: FHSS
• Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
• Antenna length: 26mm (Not including brass contacts)
• Input power supply: 4.0-8.4V
• Display method: LED
• No ground interference ( Transmitting and receiving 1 m from the ground): >300m
• Working current: 40mA
• Each channel data: depend on the transmitter
• Channel delay: <15mS
• Size: 20*14*5.3mm
• Weight: 1.2g
• Certificate: CE0678, FCCID: N45ZA8S00
• Compatible Transmitters: FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
