Flywoo 3.3V 1.5A BEC Module (Switch Control) 5-26V Input High-Efficiency Synchronous BEC

Description

Overview

The Flywoo 3.3V 1.5A BEC module is a compact switching BEC module (switch control) designed to convert a wide 526V input to a regulated 3.3V output (up to 1.5A). It supports control wiring for switching and is suitable for builds that need a stable 3.3V rail from 26S power sources.

Key Features

• Switching BEC (high-efficiency synchronous design)
• Wide input voltage range: 526V
• Regulated output: 3.3V / 1.5A
• Switch-control wiring support (control signal shown on wiring diagram)
• Small size and lightweight

Specifications

Wiring / Control Notes

• Wiring diagram labels include: 2-6S IN, LED, GND, Control signal, and output side VCC + GND to 3V-5V LED Strip/Equipment.
• Notice: If the BEC input is a 6S battery, a 6S voltage capacitor needs to be added. If the BEC input is FC or ESC, no capacitor is needed.

CLI command example shown

resource LED_STRIP 1 NONEresource PINIO 1 A09set pinio_box = 40,255,255,255set pinio_config = 1,129,129,129save

Whats Included

• 1 x 3.3V BEC module
• 1 x connecting cable set

Applications

• Providing regulated 3.3V power from 526V sources (including 26S input wiring shown)
• Power/control wiring for LED strip or other equipment (VCC/GND output shown)

For compatibility questions or build integration support, contact [email protected] or visit https://rcdrone.top/.

Details

Flywoo 3.3V BEC wiring connects 26S input and a flight-controller LED control signal to a 3V VCC/GND output for an LED strip or similar equipment.

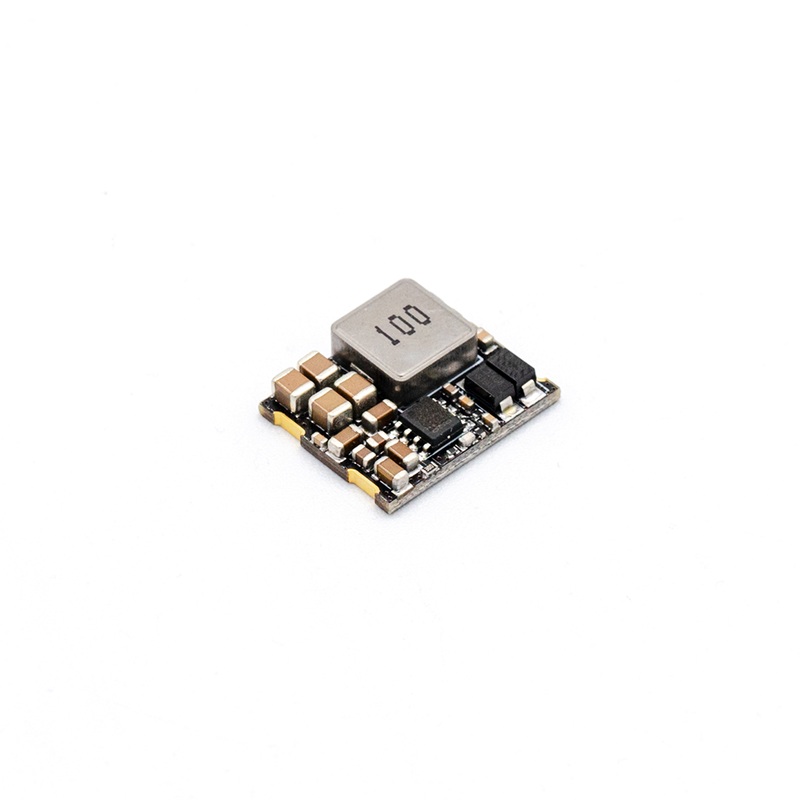

The Flywoo 3.3V 1.5A BEC uses a compact 10.85 x 6.27 mm board footprint for tight builds.
