Flywoo GOKU F405 HD 1-2S 12A AIO NO RX V2

Description

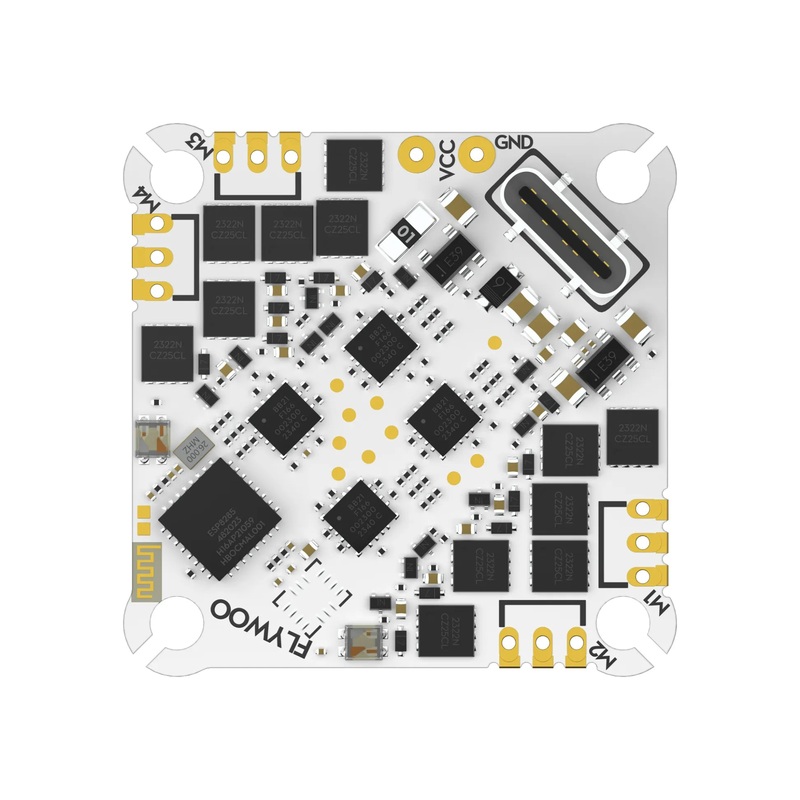

Flywoo GOKU F405 HD 1-2S 12A (No RX) – Micro Power, Maximum Control

The Flywoo GOKU F405 HD 1-2S 12A (No RX) is a compact, high-performance flight controller designed for ultra-lightweight micro drone builds. Equipped with the powerful STM32F405 MCU , this FC offers smooth, precise flight control, making it perfect for 1-2S builds that demand reliability without adding unnecessary weight.

Supporting 1-2S LiPo input , the integrated 12A 4-in-1 ESC provides efficient power distribution to your motors while maintaining a featherweight design. Whether you’re ripping through tight indoor spaces or cruising outdoors, the ICM-42688P gyro ensures buttery-smooth performance with rock-solid stability.

While this version comes without an onboard receiver , it provides flexibility to choose and install your preferred RX module based on your flying style. Plus, with plug-and-play compatibility for DJI O3/O4 air units , you can enjoy crisp HD video without the headache of complex wiring.

Key Features:

• All-in-One FC + 4-in-1 ESC Design – Lightweight and space-efficient.
• STM32F405 MCU – Reliable processing for precise control.
• ICM-42688P Gyro (SPI) – Smooth and accurate flight stabilization.
• 12A 4-in-1 ESC – Handles 1-2S power effortlessly.
• DJI O3/O4 Plug-and-Play Support – Seamless HD video integration.
• 1-2S LiPo Compatibility – Optimized for ultra-light micro builds.
• USB-C Port – Modern, fast, and convenient connectivity.
• No RX Included – Freedom to install your preferred receiver.

Specifications:

Flight Controller:

• Model: Flywoo GOKU F405 HD 1-2S 12A (No RX)
• MCU: STM32F405
• Gyro: ICM-42688P (SPI)
• OSD: Not included
• USB Port: Type-C
• Input Voltage: 3.7V – 8.4V (1-2S LiPo)
• BEC Output: 5V 2A
• Size: Compact and lightweight design
• Receiver Support: No RX included (compatible with external RX options)

ESC:

• Continuous Current: 12A (per motor)
• Input Voltage: 1-2S LiPo
• Supported Protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600
• Weight: Ultra-light for micro builds

What’s in the Box:

• 1x Flywoo GOKU F405 HD 1-2S 12A Flight Controller (No RX)
• 1x Cable set
• 1x Mounting hardware

Note: Included accessories may vary based on availability.
