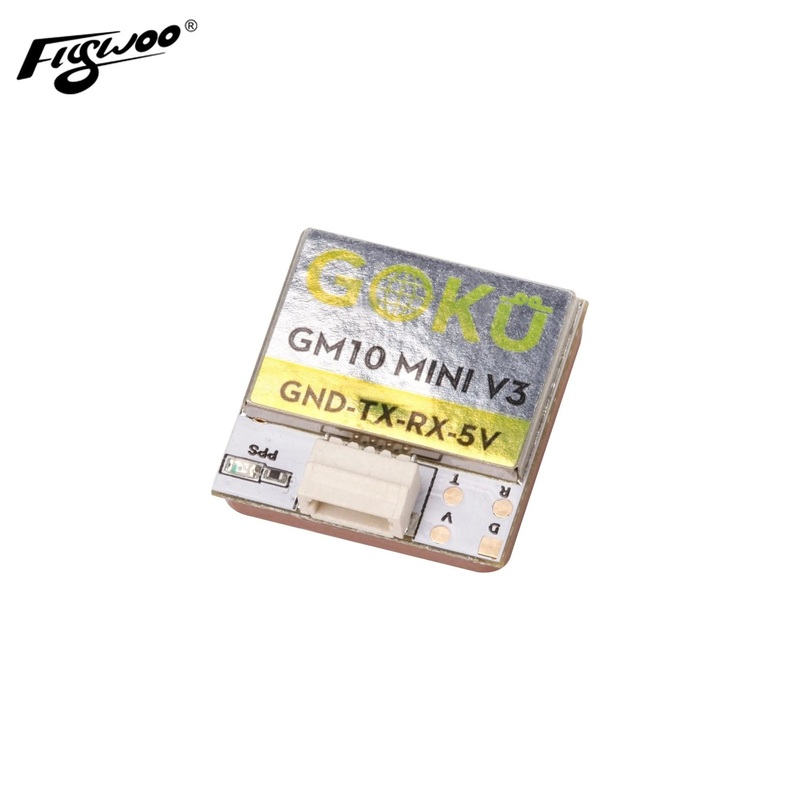

Flywoo GOKU GM10 Mini V3 GPS

Description

The Flywoo GOKU GM10 Mini V3 GPS is the latest innovation in GPS technology, equipped with the advanced M10050 GNSS chip. This next-gen GPS module ensures superior accuracy and faster satellite acquisition compared to its predecessor, the GM8 V2. Ideal for drone enthusiasts and hobbyists who demand top-notch performance.

Key Features

• Advanced M10050 Chipset: Enhances positioning accuracy and satellite search speed.
• Multi-Constellation Support: Compatible with GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.
• High Sensitivity: Tracks signals down to -162dBm and reacquires at -160dBm.
• Robust Data Handling: Supports data rates from 4800bps to 921600bps (default 115200bps) with a default output frequency of 10Hz.
• Wide Operational Limits: Operates up to 50,000m altitude and 500m/s velocity, withstanding acceleration under 4g.
• Versatile Compatibility: Works seamlessly with Betaflight 4.3.x and later, and INAV firmware 5.0.0 and above.

Specifications

• Dimensions: 18mm x 18mm x 4.8mm
• Weight: 4.7g
• Connector: 1.00mm spacing between the 4 pins patch seat
• Frequency Bands: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 searching channels
• Power Consumption: 5V DC
• Operating Temperature: -40C to +85C
• Storage Temperature: -40C to +105C
• Indicator: PPS LED (yellow): Not lit when GPS not fixed, flashes when fixed
• Module Pins: GND, TX, RX, 5V

What’s in the Box?

• 1x GM10 MINI V3 GPS
• 1x 100mm Cable
• 1x Copper Foil

Note: Accessories may vary based on supply.
