Description

SPECIFICATIONS

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: FPV Camera

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: Value 2

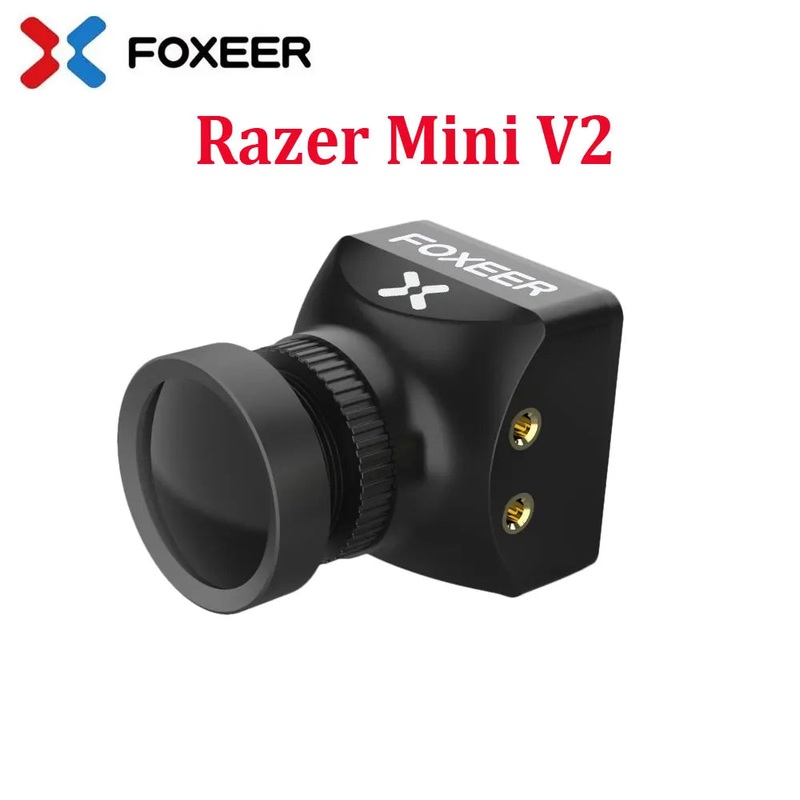

Model Number: Foxeer Razer Mini V2 Camera

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Choice: yes

Sensor Type Sony 1/3″ CMOS Sensor

Scale 4:3

Tv System PAL

Resolution 1200TVL

Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec

Video Output CVBS Analog Signal

FOV

4:3 FOV-H:125 FOV-D: 155

Shutter Speed Auto

Minimum Illumination 0.01Lux

White Balance Auto

DNR 3DNR

WDR 90dB

DAY/NIGHT EXT/Auto/Color/B&W

Flight OSD No

Input Voltage 4.5V~25V

Language ENGLISH / / / PYCCKNN / ESPANOL / FRANCAIS / POLSKI / ITALIANO / PORTUGUES / / / EAAHNIKA

Working Temperature -10~50C RH90% MAX

Working Humidity 20~80%

Storage Temperature -20~70C

Dimension 22*22mm

Consumption 140mA@5V / 64mA@12V

Weight 12g(Exclude cable)
