Futaba R7308SB 8-Channel (PWM) Air Receiver (26Ch S.BUS) FASSTest – High Gain Aerials : FUT05102716-3

Description

Futaba R7308SB 8-Channel (PWM) Air Receiver (26Ch S.BUS) FASSTest – High Gain Aerials : FUT05102716-3

Key Features

• FASSTest 2.4GHz Bi-Directional Communication System (18ch & 12ch Mode)
• Dual RX Link System Equipment
• S.BUS / S.BUS2 Port and 8-Channels for Conventional Systems
• Dual Antenna Diversity
• High Gain Antennas

Product Description

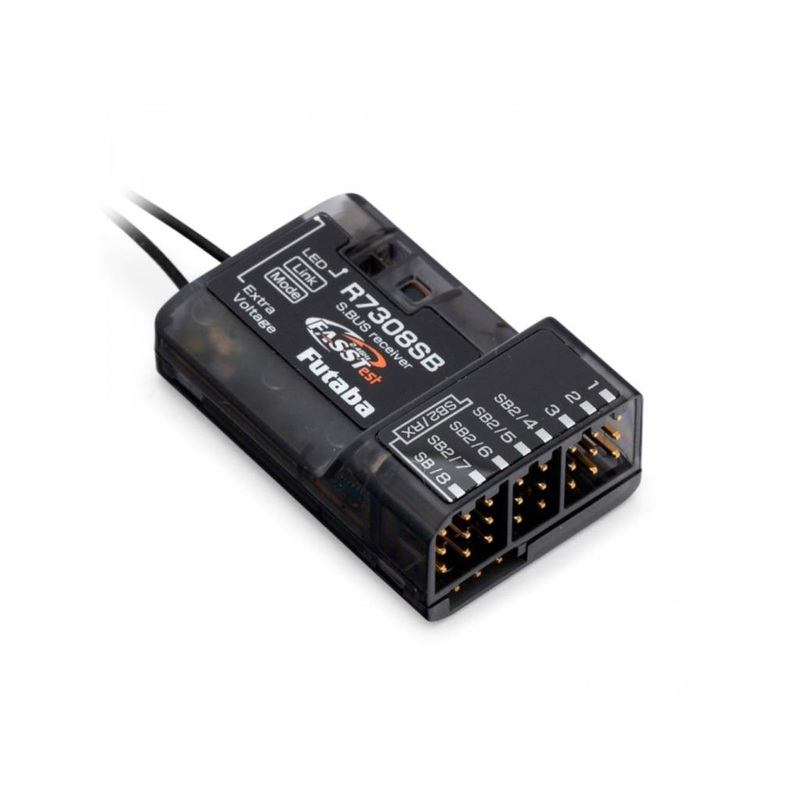

The R7308SB receiver features bi-directional communication with a FASSTest Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry sensors may be utilised. It also includes standard PWM output ports (1channel-8channel) and S.BUS output ports. The R7308SB can also be switched to the Dual RX Link system. This system can ensure safety by mounting two FASSTest receivers in the same aircraft.

Specification

• Power Requirement : 3.7 – 7.4V
• Voltage Range : 3.5 – 8.4V
• Extra Voltage Port : 70V DC
• Size : 38.8 x 24.9 x 14.3 mm
• Weight : 11g
