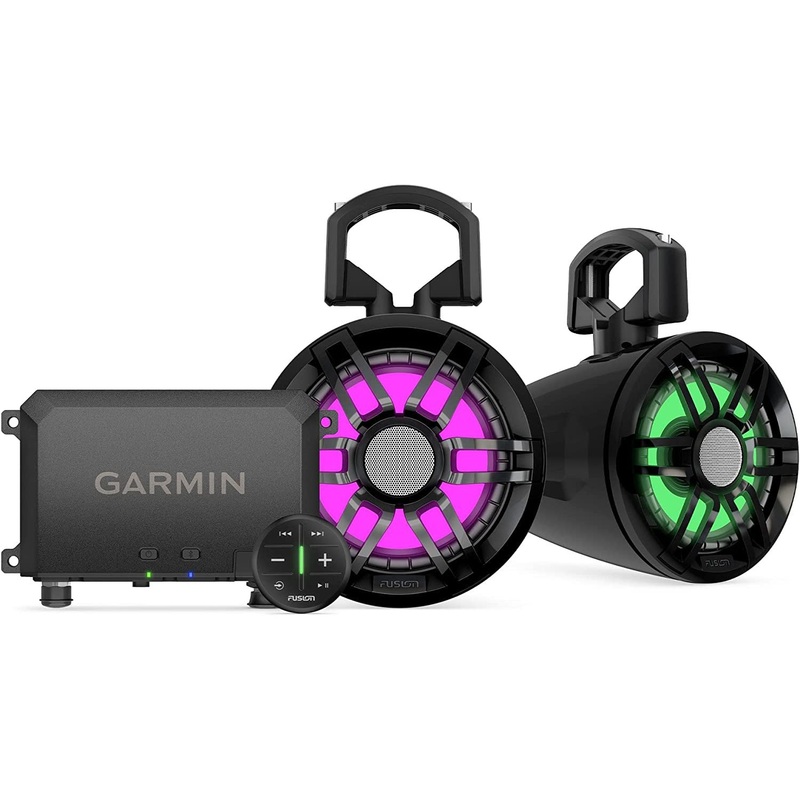

Garmin Tread Audio System with LED Controller and Wireless Speakers (010-02646-00)

Description

THIS SOUND TRAVELS

The Tread audio system delivers premium quality audio that you can take on any adventure and is designed for any off-road powersport vehicle.

Product Highlights:

Options for audio sources include AM/FM, AUX and BLUETOOTH technology.

The built-in speaker LEDs let you control and even sync colors to your music.

Enjoy the flexible setup designed for any side-by-side or other off-road vehicle.

Pairs with the Tread app on your compatible smartphone or Tread device to display music and settings.

The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat.

A wireless remote is included for convenient control.

Product Features:

RUGGED DESIGN

The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain.

FULL AUDIO SYSTEM

Get everything you need for music: two 6.5 XS-LED tower speakers, the Tread audio box with LED controller and a wireless remote.

MULTIPLE AUDIO SOURCES

Enjoy quality audio from multiple sources, including AM/FM radio, AUX and even BLUETOOTH.

CUSTOM LED SPEAKERS

Choose from thousands of colors for your speakers. You can even sync your speakers to pulse to your music. When paired with your Tread navigator (sold separately), you can sync to your vehicle speed, or match your vehicles marker on the map for group rides.

WIRELESS REMOTE

Control your music with the included wireless remote that controls volume, track and audio source.

PAIR WITH TREAD APP

Pair with the Tread app on your compatible smartphone for full control, and see a display showing music settings.

PAIR WITH TREAD DEVICE

Pair with any rugged Tread all-terrain navigation (sold separately) device to control audio, show music settings and more.

FLEXIBLE SETUP

A universal design is built for any side-by-side or off-road powersport vehicle.

Product Specifications:

Audio Box

Weight –997 g (2.2 lbs)

Physical Dimensions (LxWxH) –210 mm x 130 mm x 55 mm (8.27″ x 5.12″ x 2.165″)

Water and dust rating –IP67

Input voltage –8 to 14.4 Vdc

Current (max) –40 A

Current (muted) –less than 650 mA

Operating temperature range –-4 F to 158 F (-20 to 70 C)

Storage temperature range –-40 F to 185 F (-40 to 85 C)

Compass safe distance –203 mm (8″)

BLUETOOTH wireless range –up to 10 m (30 ft)

ANT wireless range –up to 10 m (30 ft)

Fuse –15 A mini-blade type

Peak power (Watts) –Four 200 W per channel

RMS power (Watts) –Four 100 W RMS at 14.4 Vdc input, 4 ohm

Warranty –1 year

Speakers

Speaker Weight –2.49 kg (5.5 lbs)

Physical Dimensions –177 mm x 233 mm (6.97″ x 8.78″)

Operating temperature range –32 – 122 F (0 to 50 C)

Speaker size –6.5″

Peak power (Watts) –200 W per speaker

RMS power (Watts) –50 W

Sensitivity (1 W/1 m) –91 db

Frequency response –80 Hz – 18kHz

Nominal impedance –4 ohms

Recommended amplifier power (RMS) –20 – 150 W

LED lighting –yes (RGB)

LED supply voltage –10.8 – 16 Vdc

LED load current @ 14.4 VDC –150 mA

Voice coil diameter –30 mm (1.18″)

Cone material –polypropylene (PP) cone with cloth surround

Tweeter type –aluminum dome

Supported roll bar sizes –33.4 mm (1.31″) to 50.8 mm (2.00″) outer diameter

Warranty –1 year

Wiring –3 m
