Description

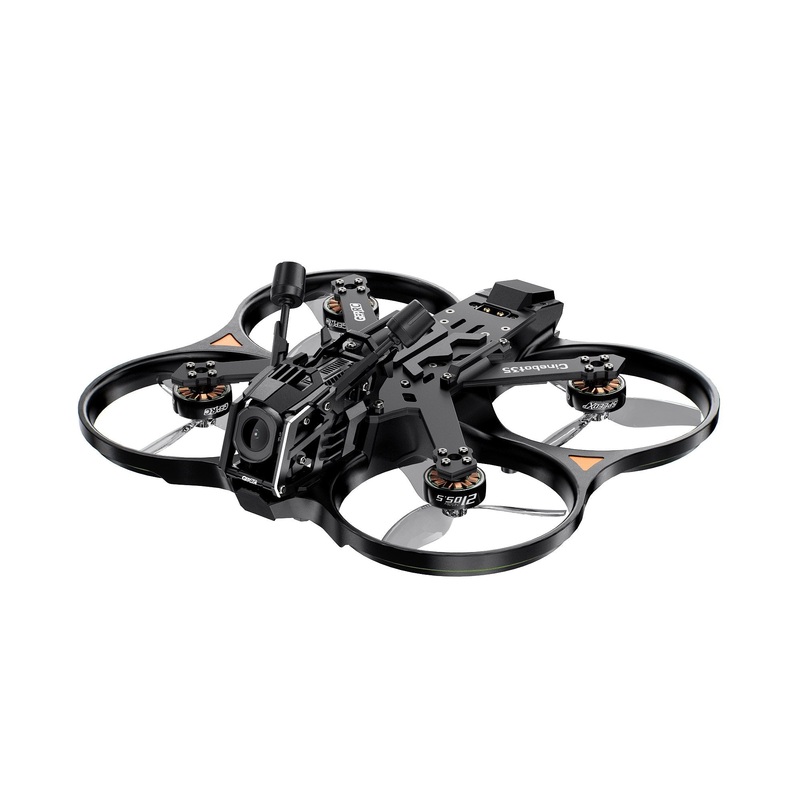

GEPRC Cinebot35 O4 Pro HD 6S CineWhoop FPV Drone GPS ELRS

The all-new Cinebot35 is not just an evolution in size it represents a complete integration of advanced flight concepts.

Designed for both professional cinematic shooting and daily freestyle flying, GEPRC engineers have developed a brand-new solution that balances power, stability, and versatility.

Powered by the latest TAKER H743 Mini Flight Controller, H60 32-bit 60A ESC, and 2105.5 / 2450KV motors, Cinebot35 delivers strong, responsive, and aggressive throttle performance ensuring every punch-out is precise and powerful.

Continuing the suspended vibration-damping design from the Cinebot25V2, Cinebot35 features an independent HD camera mounting system, allowing VTX modules to be shared across different models, making maintenance simpler within a highly integrated structure.

Cinebot35 marks a new stage of professional imaging and high-efficiency flight performance.

Feature

1. 6-Point Suspended Vibration-Damping Independent HD Camera Unit
2. New Power System: TAKER H743 FC + H60 Mini ESC + 2105.5/2450KV Motors
3. Equipped with DJI O4 Air Unit Pro (O4 Version)
4. Fully Optimized Frame Structure with High-Coverage Electronics Bay
5. Dedicated Function Board: Anti-Spark, Buzzer, LED BEC, USB Tuning Port
6. Protective Front Canopy to Safeguard DJI O4 Air Unit Pro
7. Includes Dedicated Action Camera Mount

Specifications

• Model: Cinebot35 O4 Pro Version
• Frame: GEP-CT35
• Main Plate Thickness: 3.5 mm
• Bottom Plate Thickness: 1.5 mm
• Wheelbase: 167 mm
• Flight System: TAKER H743 Flight Controller + H60 Mini ESC
• MCU: STM32H743
• Gyro: ICM42688-P (SPI)
• FC Firmware: GEPRC_TAKER_H743MINI
• Flash: 16 MB
• ESC: H60 Mini 32-bit
• Motor: SPEEDX2 2105.5 / 2450KV
• Propeller: HQProp D-T90MM 3
• Battery Connector: XT60
• VTX: DJI O4 Air Unit Pro
• Camera: DJI O4 Air Unit Pro Camera
• Antenna: DJI O4 Air Unit Pro Antenna
• Receiver: PNPPNP (O4 Pro built-in RX) / ELRS 2.4G
• Weight (ELRS 2.4G Version): 388 g 5 g
• GPS: GEP-M10Q
• Recommended Battery: 6S 1300mAh 6S 1550mAh
• Flight Time: 1011 minutes
  (Tested with slow cruising flight. Actual flight time may vary depending on flying style.)

Includes

• 1 Cinebot35 Quadcopter
• 4 HQProp D-T90MM (Pairs)
• 1 15*150mm Battery Strap
• 1 L-Shaped 1.5mm Hex Wrench
• 1 Spare Screw Pack
• 1 Anti-Slip Battery Pad
• 1 Binding Plug
• 4 Rear Landing Pads
• 2 Front Bottom Landing Pads
• 1 Front Top Cover
• 2 O4 Antenna Mounts
• 2 Acrylic Plates
• 3 Damping Balls

Spare Screw Kit Includes

• 2 Rivet Nuts
• 4 M2*4 Button Head Hex Screws
• 3 M2*10 Button Head Hex Screws
• 4 M2*7 Button Head Hex Screws
• 3 M2*6 Button Head Hex Screws
• 2 M2*10 Socket Head Screws

Additional Accessories (Selected Versions Only)

• 1 Receiver Connector Cable (O4 PNP)
