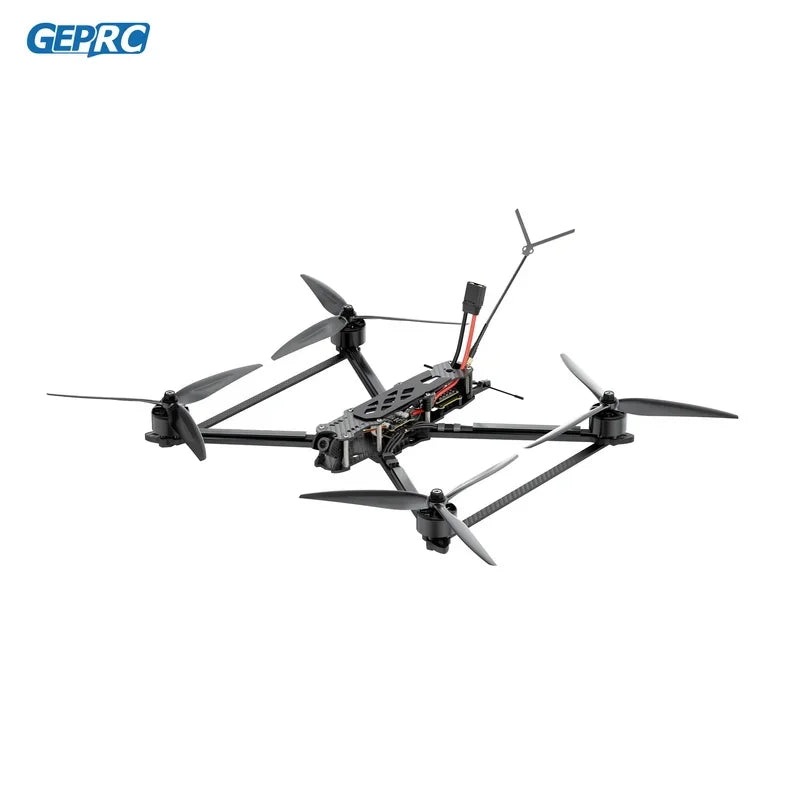

GEPRC MARK4 LR10 10-Inch Long Range FPV Drone EM3115 900KV, 60A ESC, 1.2G 2W VTX, 3kg Payload, TBS or ELRS 915 TBSNanoRX

Description

GEPRC MARK4 LR10 10-Inch Long Range FPV Freestyle Drone, EM3115 900KV, GEP-BL60A-4IN1 60A ESC, 1.2G 2W VTX, 3kg Max Payload, TBS Nano or ELRS 915

The GEPRC MARK4 LR10 is the 10-inch flagship of the MARK4 long-range FPV series, engineered for pilots who demand serious payload capacity, extended range, and freestyle performance in a single platform. The GEP-MARK4-10 frame features dual horizontal stiffener bars for improved rigidity and flight stability, with 7mm arms and a 429mm wheelbase built to handle the EM3115 900KV motors and Gemfan 1050-3 tri-blade props. Power is managed by the GEP-BL60A-4IN1 60A 4-in-1 ESC paired with the GEPRC F405 V2 flight controller (STM32F405RGT6, ICM-42688-P gyro). The RAD VTX 1.2G 2W delivers long-range analog video penetration, while the Caddx H1 camera provides 1080p HD FPV imagery. Supports up to 8000mAh batteries and carries a maximum payload of 3kg. Available with TBS Nano RX or ELRS 915MHz receiver.

Key Features

• 10-Inch / 429mm Wheelbase GEP-MARK4-10 frame with dual horizontal stiffener bars
• EM3115 900KV Motors High-torque brushless motors for 10-inch props and heavy payloads
• GEP-BL60A-4IN1 60A ESC 4-in-1 ESC for clean builds and reliable power delivery
• GEPRC F405 V2 FC STM32F405RGT6 MCU, ICM-42688-P gyroscope
• RAD VTX 1.2G 2W Long-range analog video transmission (5.8G and 4.9G VTX options also available)
• Caddx H1 Camera 1080p HD FPV camera with fixed mount
• 3kg Maximum Payload Carry cameras, sensors, or delivery payloads
• 8000mAh Max Battery Support Extended flight endurance
• Gemfan 1050-3 Propellers Tri-blade 10-inch props for efficiency and thrust
• TBS Nano RX or ELRS 915MHz Choose your preferred long-range control link
• 96810g All-Up Weight

Frame Specifications

• Model: GEP-MARK4-10
• Wheelbase: 429mm
• Top Plate: 2mm | Bottom Plate: 3mm | Mid Plate: 3mm
• Side Plate: 2.5mm | Arm: 7mm | Stiffener Bar: 3mm

Full Specifications

• FC: GEPRC F405 V2 (STM32F405RGT6, ICM-42688-P)
• ESC: GEP-BL60A-4IN1 60A 4-in-1
• Motor: EM3115 900KV
• Props: Gemfan 1050-3 (1R/1L pair included)
• Camera: Caddx H1 (1080p HD, fixed mount)
• VTX: RAD VTX 1.2G 2W (optional: RAD 5.8G 2.5W / 1.6W, RAD 4.9G 1.6W, GEPRC 1.2G 2W)
• Antenna: RHCP SMA (1.2G / 4.9G / 5.8G options)
• Receiver: TBS Nano RX or ELRS 915MHz (variant dependent)
• Operating Frequency: 2.4GHz / 5.8GHz
• Weight: 96810g
• Max Payload: 3kg
• Max Battery: 8000mAh
• GPS: Yes
• Origin: Mainland China

Whats in the Box

• 1 MARK4 LR10 FPV Drone
• 2 Gemfan 1050-3 props (1R/1L)
• 1 Camera anti-slip pad
• 1 Reserved screw pack
• 1 L-shaped screwdriver (1.5mm)
• 1 L-shaped screwdriver (2.0mm)
• 1 M8 wrench
• 2 Anti-slip rubber strips with zinc alloy buckle (20250mm)
• 2 Anti-slip rubber strips with zinc alloy buckle (20300mm)
• 1 GEPRC shock absorber pad set V2 (4-in-1)
• 1 VTX antenna

Perfect For

• Long-range FPV freestyle and cruising
• Payload delivery and aerial sensor missions
• Pilots running TBS Crossfire or ELRS 915MHz long-range systems
• Builds requiring 1.2GHz video for maximum penetration and range
• Heavy-lift FPV applications up to 3kg payload

Warranty Notes

• Warranty does not cover crash damage, water damage, unauthorized modifications, or damage from improper operation
• For Caddx or DJI component issues, contact those manufacturers directly
• Always fly in accordance with local regulations and in safe environments
