Description

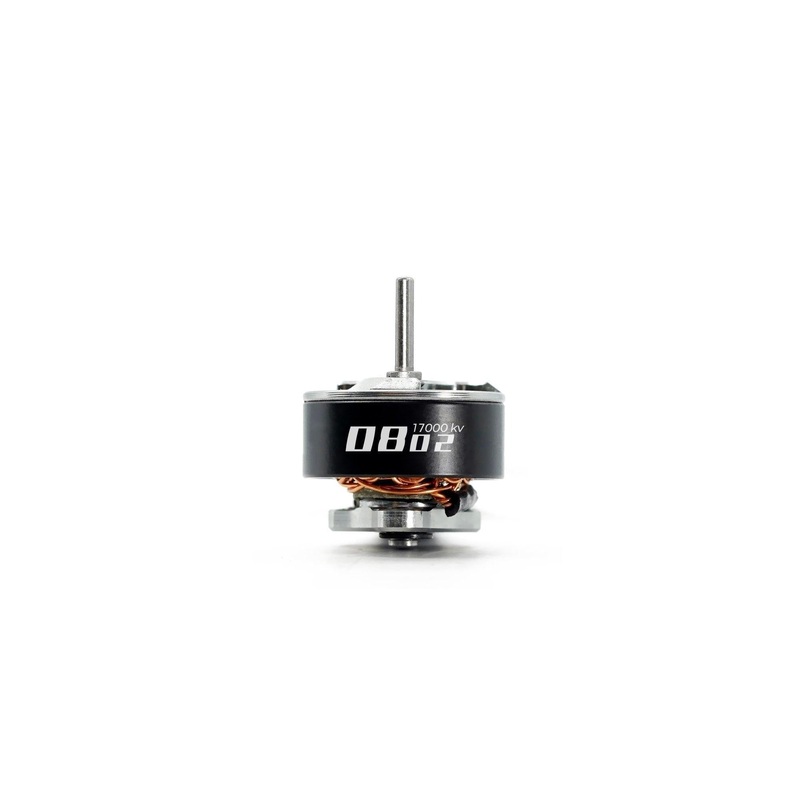

GEPRC SPEEDX2 0802 17000KV/22000KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1.6 inch

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: GEPRC SPEEDX2 0802 Brushless Motor

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: GEPRC

Summary:

GEPRC SPEEDX2 0802 brushless motor. specially developed for Tiny and Whoop FPV. SPEEDX2 motors are enough to meet your needs.

GEPRC SPEEDX2 0802 motors have good heat dissipation. lightweight design. advanced material technology. perfect for Tiny and Whoop FPV.

Specifications:

Model: SPEEDX2 0802

KV: 17000KV/22000KV

Configuration: 9N12P

Stator Diameter: 8.4mm

Stator Height: 2.0mm

Shaft Diameter: 1.0mm

Size: 10.7mm*14.4mm

Rotor: N52H

Weight: 2.0g

Target: Tiny & Whoop FPV

Recommended battery: 1S 380mAh-530mAh LiPo

Features:

High efficiency and smooth

Perfect fit for Tiny and Whoop FPV

Motor dynamic balance. stable operation

Suitable for 1.4inch&1.6inch Propellers

Package Included:

1 x SPEEDX2 0802 motor

1 x Spare screw set

The H-class enameled wire features high-temperature resistance up to 180C. with a maximum current rating of 4.9A and a 0.2mm silicon-copper base design that minimizes current loss and enhances overall performance.

The GEPRC SPEEDX2 0803 motor is ideal for training on 1.6

The GEPRC SPEEDX2 0803-10.000KV motor excels in rapid response and high power applications. making it well-suited for racing. In contrast. the 0802-22.000KV motor offers precise control and throttle handling capabilities. making it ideal for freestyle flights.

Specifications:Model: GEPRC SPEEDX2 0802-17.000KVMaximum Current: 5 ampsIron Core: 0.2mm silicon copper sheet constructionPropeller: GF-1635 (4-blade) compatibleMagnet: Sintered NdFeB N52H gradeShaft Diameter: 5mmBearing: 3×1.5*1mm bearing designLead Wire Size: 30 AWG. 40mm in lengthNumber of Stator Slots: 9ESC: compatible with 6A ESCsMagnet Wire: Class H. with high-temperature resistance up to 180C (enameled wire)Rated Voltage: 8.4V (2S) compatible
