Sale!

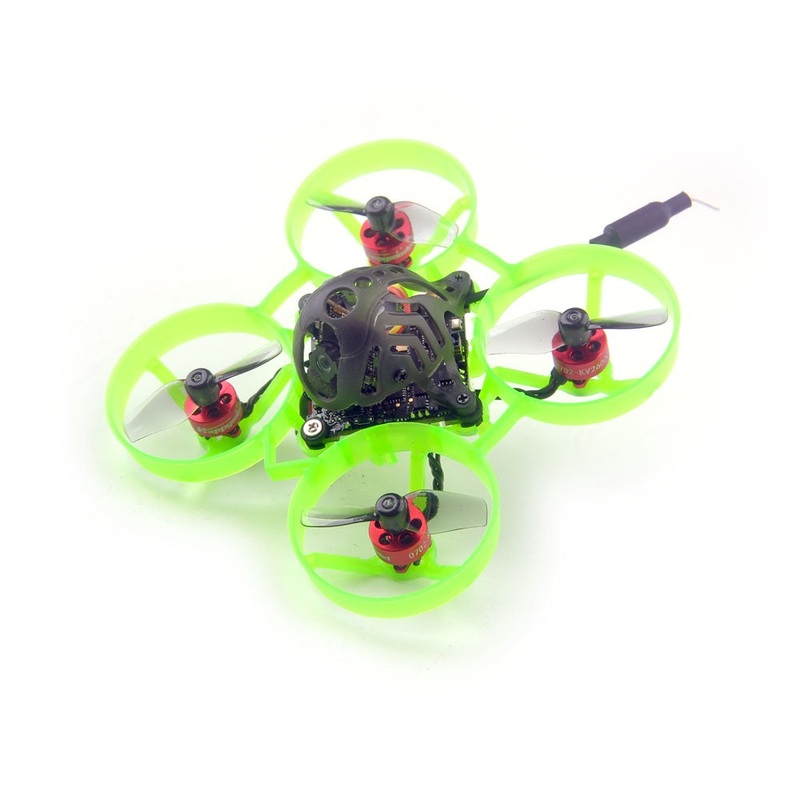

HappyModel Mobula6 ELRS 1s 65mm Brushless Whoop - ExpressLRS BNF (2.4ghz) [DG]

HappyModel Mobula6 ELRS 1s 65mm Brushless Whoop – ExpressLRS BNF (2.4ghz) [DG]

Original price was: $44.00.Current price is: $26.40.

SKU: CH570844986 Category:

Description

Are you looking to buy a HappyModel Mobula6 ELRS Brushless BNF Whoop in Australia?

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. Were sure this would be a good option for you in the Tiny Whoop Season.

Features:

  • AIO Flight controller with ELRS Receiver and 5.8G VTX
  • Super light 1S 65mm Brushless whoop only 18.7g
  • Equipment with the lightest brushless motors-SE0702 only 1.46gram
  • Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
  • Smooth and powerful
  • Compatible for 1S Lipo/LIHV

Specifications:

  • Brand Name: Happymodel
  • Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
  • Wheelbase: 65mm
  • Size: 80mm*80mm*37mm
  • Weight: 18.7g

Package includes:

Item Name Qty
Mobula6 1S 65mm whoop Drone Frame 1
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver 1
SE0702 KV26000 brushless motor 4
HQPROP 31mm bi-blade propellers(4cw+4ccw) 1
Runcam Nano3 1/3 CMOS 800TVL camera 1
Onboard 5.8G 25mw~200mw VTX 1
1S 300mah 30C LiHV Battery 4
1S Lipo/LIHV USB Charger 1
Propeller disassemble tool 1

Spare parts specifications:

Motor Mode: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:1mm
Motor Dimension(Dia.*Len):9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only
Propellers HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g
Flight controller ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G/915MHz/868MHz receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RFFrequency: 2.4GHzAntenna : SMD antenna
TelemetryoutputPower:<12dBmReceiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible
Onboard Serial-based ELRS Receiver Operationcurrent:~100Ma
RxToFCprotocol:CSRF
RFFrequencyoptional: 915mhz or 868mhz(EU)
Antenna connector: IPEX4
TelemetryoutputPower:<17dBmFirmware target: Happymodel_RX_ES915RXReceiver protocol: CRSF
Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware)
Firmware flash via Betaflight pass-through
Onboard 5.8g VTX Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race bandSmartaudio ready
Runcam Nano3 Model: RunCam Nano 3
Image Sensor: 1/3 CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Lipo Battery Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8gConnector: PH2.0
