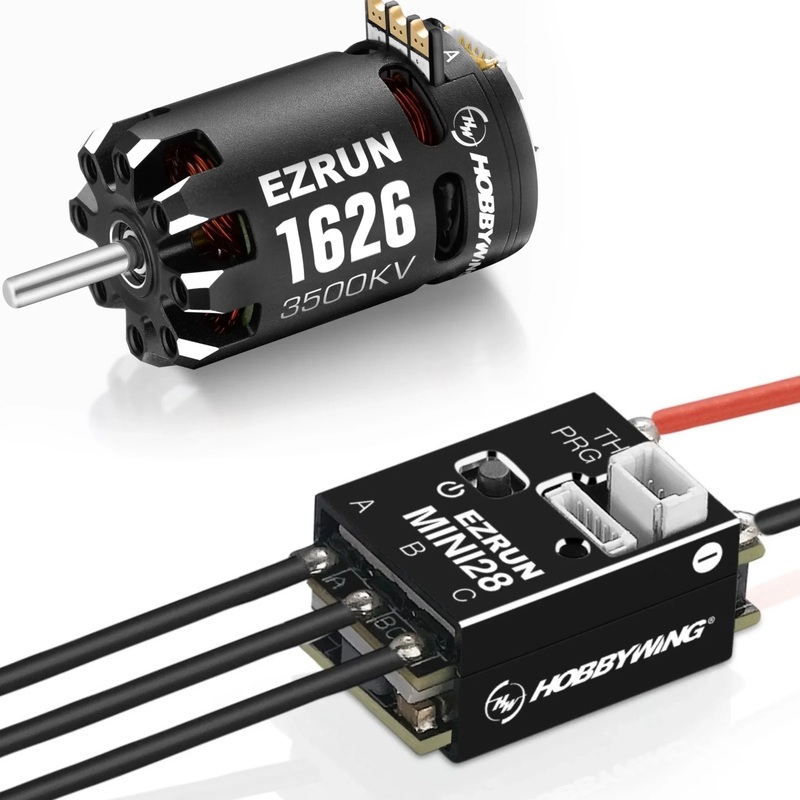

Hobbywing EZRUN Mini28 Combo – EZRUN 1626 Sensored Motor with EZRUN Mini28 ESC for RC Car Trucks

Description

Hobbywing EZRUN Mini28 Combo

Designed for high-power 1/28th scale builders

What’s in the box?

• (1) Hobbywing EZRUN Mini28 ESC
• (1)EZRUN 1626 Sensored Motor
• (1) Supportive accessories (double side tape. etc)

p/n	ESC	Motor	kv	Lipo Rating
38020366	EzrunMINI28	Ezrun1626SD	3500	2s
38020367	EzrunMINI28	Ezrun1626SD	5000	2s
38020368	EzrunMINI28	Ezrun1626SD	6500	2s

Features

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC. timing advance can be used to increase top speeds drastically.
• Zero cogging. consistent torque. and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure. convenient for daily cleaning and maintenance.

EZRUN 1626Sensored Brushless Motor

Model	Ezrun 1626-3500KV	Ezrun 1626-5000KV	Ezrun 1626-6500KV
PN	30402653	30402654	30402655
Pole	2	2	2
KV	3500KV	5000KV	6500KV
No-load Current(A)	0.4A	0.5A	0.6A
Input Voltage	2S	2S	2S
Diameter/ Length(mm)	16	16	16
Shaft Diameter/ Length (mm)	26	26	26
Applications	1/28th Mini	1/28th Mini	1/28th Mini
Weight	18g	18g	18g

Programming devices (purchase separately):

• OTA Programmer
• Tunalyzer
• LCD Program Box

Manual download

EZRUN 1626 Sensored Motor

EZRUN Mini28 ESC
