Holybro Tekko32 F4 45A ESC (AM32)

Description

Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32-bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and a wide compatibility range with future products.

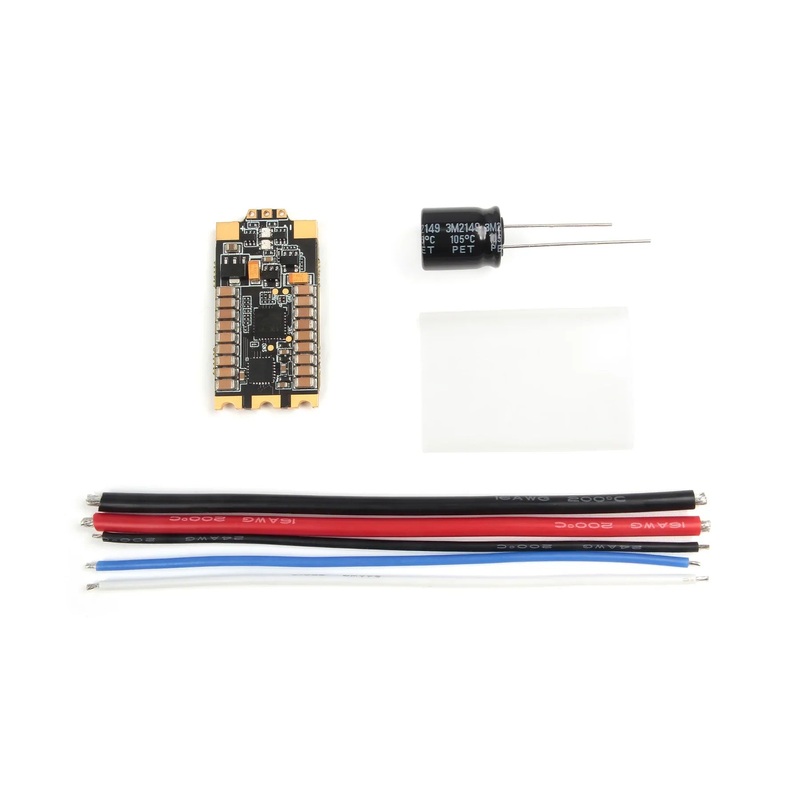

Package Includes:

1x Tekko32 F4 45A ESC

1x Electrolytic capacitor: 330uF 35v

1x 24AWG 100mm Black wire

1x 24AWG 100mm White wire

1x 24AWG 100mm Blue wire

1x 16AWG 100mm Red wire

1x 16AWG 100mm Black wire

Features:

• F4 MCU support Dshot1200 up to 32kHz
• PWM up to 48k
• AM32 firmware (target:AM32_TEKKO32_F421)
• Small size & low weight
• Auto Timing Feature
• Built-in Current sensor
• Smooth Response

Specifications:

• 2-6s LIPO input
• Ext. cap recommended for 6s (330uf 35v for 6s usage.)
• 45A designed
• Size: 17.3*34.3*4.5mm
• Weight: 5.8g

Dimensions:
