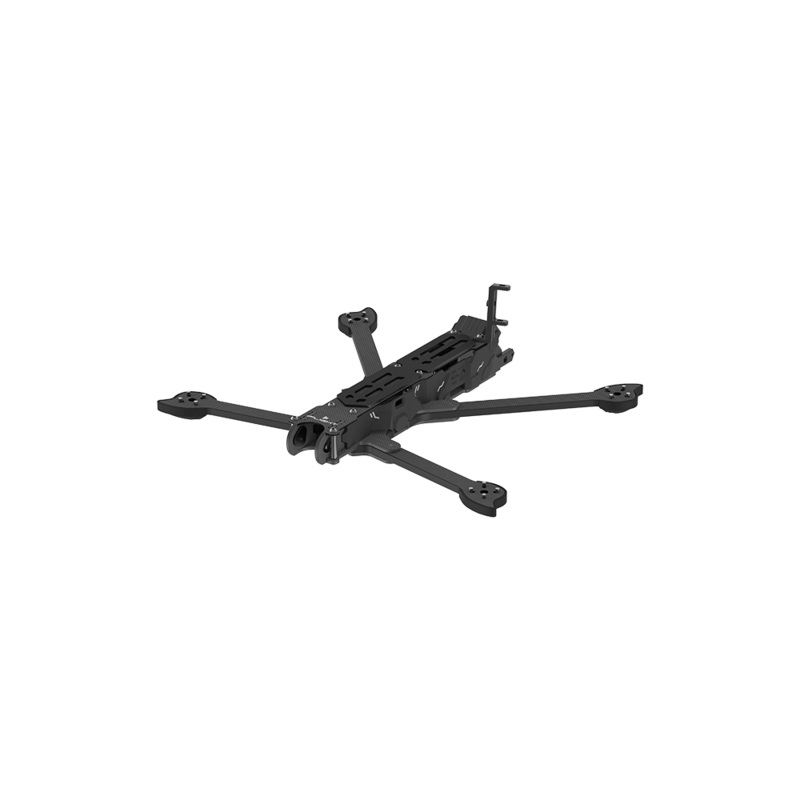

iFlight Chimera7 ECO 7″ Frame Kit

Description

The KING of Long Range FPV! A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance.

Check out all of our6″ + framesand our selection ofiFlight gear!

Features

• 30.5×30.5mm, 25x25mm, or 20x20mm for almost any VTX mounting
• 16x16mm or 19x19mm Motor Mounting
• 6mm Arm Thickness

Specifications

• Wheelbase: 327mm
• Geometry: DeadCat (DC)
• Frame Dimension: L270xW199xH34 mm
• Frame Body Dimension: 34mm
• Arm Thickness: 6mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Upper Plate Thickness: 3mm
• Camera Plate Thickness: 3mm
• Max Flight Stack Height: 21mm
• Max VTX Height: 30mm
• Flight Stack Mounting: 30.5×30.5mm /3mm
• VTX Mounting: 30.5×30.5 3mm / 25×25 1.6mm / 20×20 2mm
• Motor Mounting: 16x16mm / 19x19mm 3mm
• Weight: 357g

Includes

• 1x iFlight Chimera7 ECO 7″ Frame Kit
• 1x TPU Set
• 1x Screw Bag
• 1x Anti-Slip Battery Pad
• 2x Battery Strap
• 4x AMASS MR30 Plugs
