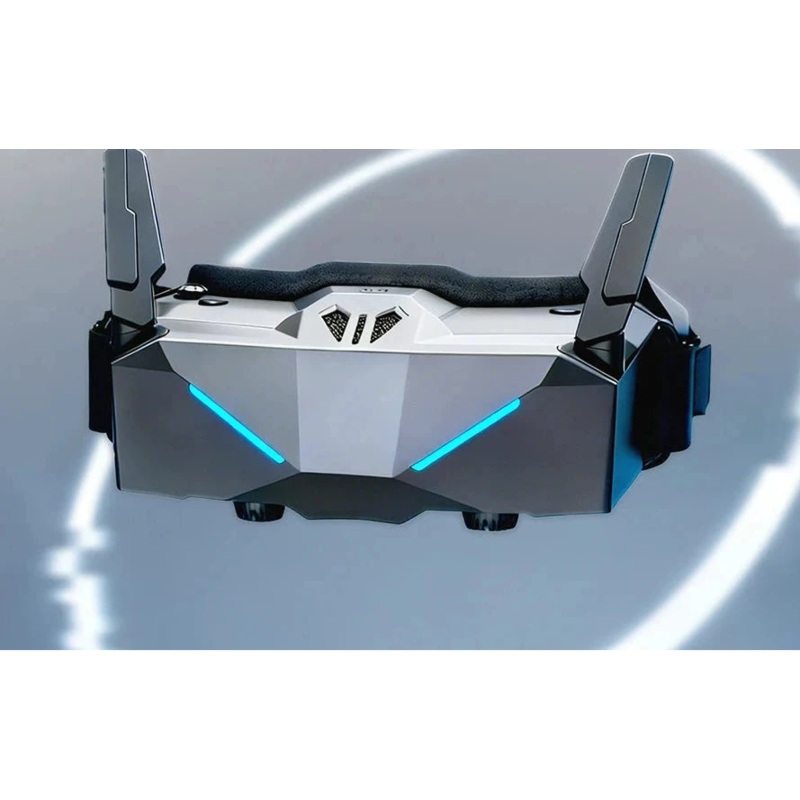

iFlight Skyviz FPV Analog Goggles Dual 100Hz Micro-OLED 19201080 DVR 5.8GHz Skyviz Goggles

Description

Mecha-Style Analog FPV Goggles with Dual 100Hz Micro-OLED Displays, 7-Element Aspherical Lens & Built-In DVR

The iFlight Skyviz are the world’s first mecha-style, highly integrated analog FPV goggles combining dual 0.49-inch 100Hz Micro-OLED displays at 19201080 per eye with a 7-element aspherical lens system for stutter-free, crystal-clear FPV imagery with zero screen-door effect. Built-in 5.8GHz fusion receiver, foldable antenna design, Micro HDMI and AV-IN inputs, HD DVR recording, and a fully adjustable optical system (IPD 56-72mm, diopter -7D to +2D) make the Skyviz the most capable analog FPV goggle available. Race and Freestyle FOV modes, customizable LED, adjustable fan, and a minimalist UI complete a goggle engineered for serious FPV pilots who demand the best analog experience.

Key Features

• Dual 100Hz Micro-OLED Displays – 0.49″ per eye, 19201080 resolution, zero screen-door effect
• 7-Element Aspherical Lens System – Sharp, distortion-free imagery at any diopter setting
• 44 FOV – Race and Freestyle FOV modes selectable
• IPD Adjustment – 56-72mm for universal fit
• Diopter Adjustment – -7.0D to +2.0D, no glasses needed
• Built-In 5.8GHz Fusion Receiver – Integrated for clean, reliable analog reception
• Third-Party VRX Support – Dedicated mounting bracket for external receivers
• Micro HDMI Input – For HD digital sources
• AV-IN (3.5mm) – Standard analog video input
• HD DVR Recording – MP4 format, 30fps, microSD up to 64GB
• 2-6S Power Input – Wide voltage compatibility
• Foldable Antenna Design – Compact storage, omnidirectional linear polarization
• Adjustable Fan – Manual speed control for long-session comfort
• Customizable LED – Personalized goggle appearance
• Minimalist UI – Intuitive controls with multilingual support (EN/CN)
• ~300g with Headband – Lightweight for extended wear

Perfect For

• Analog FPV pilots wanting the best visual quality available
• Freestyle and racing FPV pilots
• Pilots who wear glasses (wide diopter range)
• Anyone wanting DVR recording without an external module
• Pilots wanting HDMI input for simulators or digital sources
• Upgrading from box goggles or entry-level analog goggles

Display & Optics

• Screen Size (per eye): 0.49-inch Micro-OLED
• Resolution (per eye): 19201080
• Refresh Rate: 100Hz (max)
• FOV: 44 (single screen)
• Aspect Ratio: 16:9 / 4:3 selectable
• Lens System: 7-element aspherical
• IPD Range: 56-72mm
• Diopter Range: -7.0D to +2.0D

Receiver & Inputs

• Built-In Receiver: 5.8GHz fusion receiver
• Third-Party VRX: Supported via dedicated mounting bracket
• HDMI-IN: Micro HDMI
• AV-IN: 3.5mm
• Antenna: Omnidirectional linear polarization, foldable

DVR & Storage

• DVR Format: MP4
• DVR Frame Rate: 30fps (CVBS)
• Storage: microSD up to 64GB

Power & Physical

• Power Input: 2-6S (DC4.5 interface)
• Weight: ~300g (with headband)
• Dimensions: 174.5101.669.5mm (antenna folded)
• Operating Temperature: -10C to 40C
• Language: English / Chinese

What’s Included

• 1x iFlight Skyviz analog FPV goggles
• 1x Headband
• Built-in 5.8GHz receiver
• Foldable antenna

Important Notes

• iFlight Skyviz dual 100Hz Micro-OLED analog FPV goggles
• Built-in 5.8GHz receiver; also supports third-party VRX modules
• DVR requires microSD card (not included, up to 64GB)
• Battery/power source not included
• Compatible with all 5.8GHz analog FPV systems
