Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 30.5*30.5mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: SucceX 50A

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description

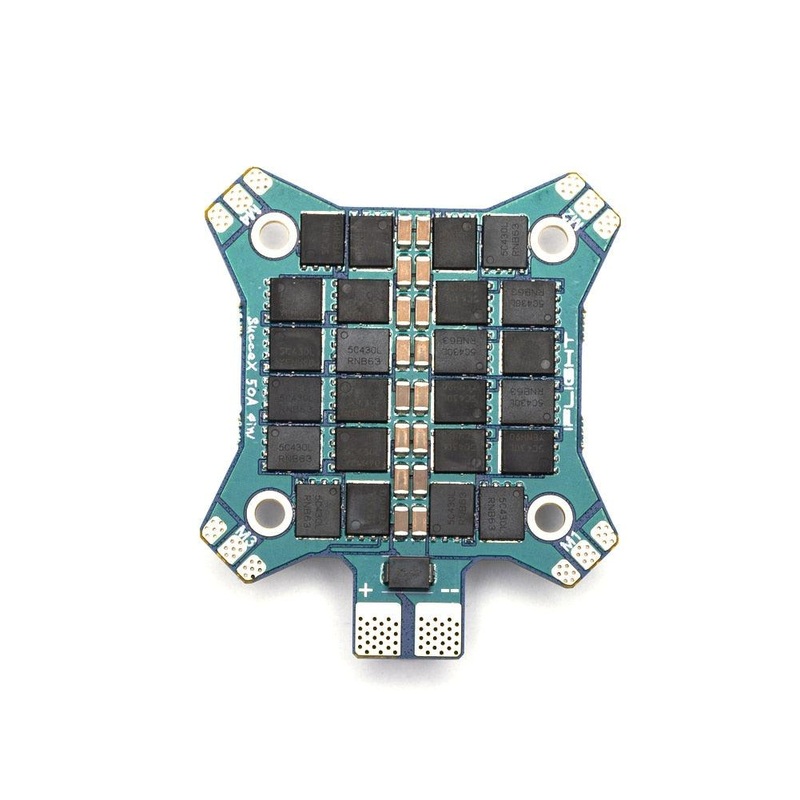

SucceX 50A 2-6S BLHeli_32 Dshot 600 4-in-1 ESC

Features:

• 6 layers double-sided PCB board;

• 4OZ for layer 1-4. 2OZ for layer 5-6. 4oz 1.6mm thick power board(0.9mm copper ratio).better operating load capacity;

• STM32F051 MCU

• TDK MLCC Low ESR ceramic capacitors;

• Top grade NTMFS5C430NL MOSFET;

• Rational layout. countersunk holes on extended solder pads to ensure PCB layer connection

Specification:

• Mounting Holes: 30.5*30.5mm/3mm

• Weight:14.3g

• Volts input: 2-6S

• F051 MCU. 48Mhz Runs BLHELI 32.X Firmware

• Current sensor: Yes

• TelemetrySupported

• BEC: No

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Target: iFlight-BL32-4IN1

• BLHeliSuite download (BL32):https://github.com/blheli-configurator/blheli-configurator/releases

Package included:

• 1 xSucceX 50A 2-6S BLHeli_32 Dshot600 4-in-1 ESC (F051)
