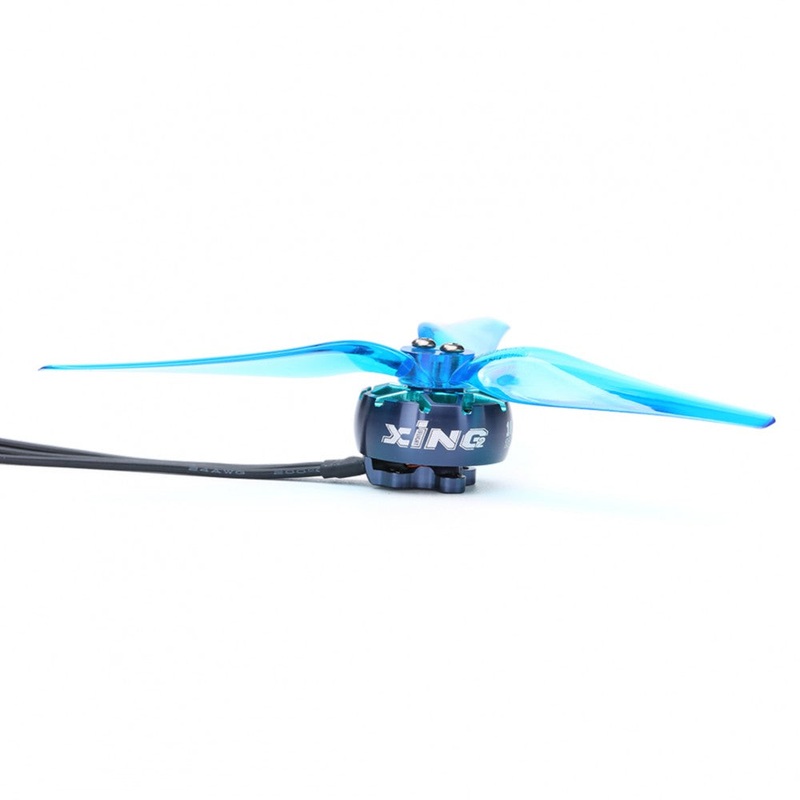

iFlight Xing2 1806 1600KV Motor

Description

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. iFlight’s ready to announce our predecessor the XING2! The high manufacturing standards and premium performance offered by the Xing line have been improved upon,withNew center slotted N52H curved arc magnets,O-ring bearing protection,adjusted tolerancestoreduce the magnet air gap and stator lamination, causingbetterefficiency and higher power!

Check out all our Motors and the rest of our iFlight Products!

Features:

• 1.5mm outer titanium alloy shaft
• Japanese NSK5*5*2.5mm bearings
• N52H curved magnets
• Motor wires protected
• Dynamically balanced

Specifications:

• Model:XING2 1806
• KV: 1600KV / 2500KV (select)
• Input Voltage: 4S/6S Lipo
• Configuration: 12N14P
• Stator Diameter: 18mm
• Stator Length: 6mm
• Weight: 19.3g with short wire
• Wire length:24AWG 160mm
• Bottom Mounting pattern: 12*12mm2mm
• Top Mounting pattern: 6*6mm2mm

Package Includes:

• 1 x iFlight Xing2 1806 1600KV Motor
