In Stock! MTO6880-190-HA-C3 Maytech Waterproof Dustproof Sensored Motor 6880 190KV with Exrtra Big Bearing

In Stock! MTO6880-190-HA-C3 Maytech Waterproof Dustproof Sensored Motor 6880 190KV with Exrtra Big Bearing

Original price was: $11.00.Current price is: $6.60.

SKU: UVXZ746841891001 Category:

Description

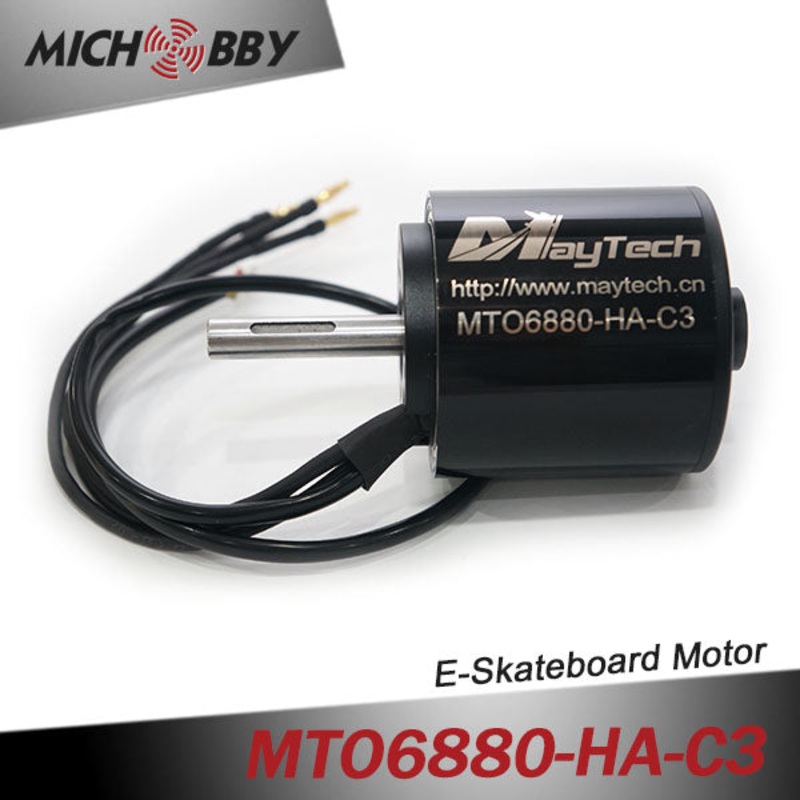

Maytech waterproof dustproof sensored motor 6880 190KV with exrtra big bearing for electric mountainboard offroad skateboard robots:

Model NO MTO6880-190-HA-C3
Motor KV 190(RPM/V)
Shaft 10mm
Idle Current 0.8A
Max. Current 65A
Input Volt 2-12Lipo cell
Max. Output Watt 3550W
Max. Pull 13000g
Net Weight 860g
Motor Diameter 68mm
Internal Resistance 0.0402
Features sensored
Application For electric skateboard/e-bike/robots
Features Waterproof and dustproof

Features:

  • The motors are suitable for the electric skateboards or electric bikes or robots.
  • With big bearing sitting between stator and rotor for more stability
  • The up and bottom capsare made of aluminium alloy.
  • The motor caseis made of steel.
  • The static balance is confirm.
  • NSK Japanese bearings
  • 45h sintered ndfeb magnets
  • Stator is stacked with silicon steel
  • Use high temperature and oxygen-free copper wire
  • Stainless steel shaft
  • High-temperature micro ball-bearing

New updated 6880 motor features VS old version:

1. New version is with embedded hall sensor to stator:
Hall sensor board is more stable and motor has more precise positioning and more smooth starup.

2. With changing the hall sensor position, inside space is bigger than before and the original small bearing inside the stator can be replaced with a larger model, which increases the lifetime of the motor.

3. Mounting holes are updated to 8x M4 with deeper thread 11mm. Motor installation will be firmer.

New drawing with updated embeded hall sensor:
