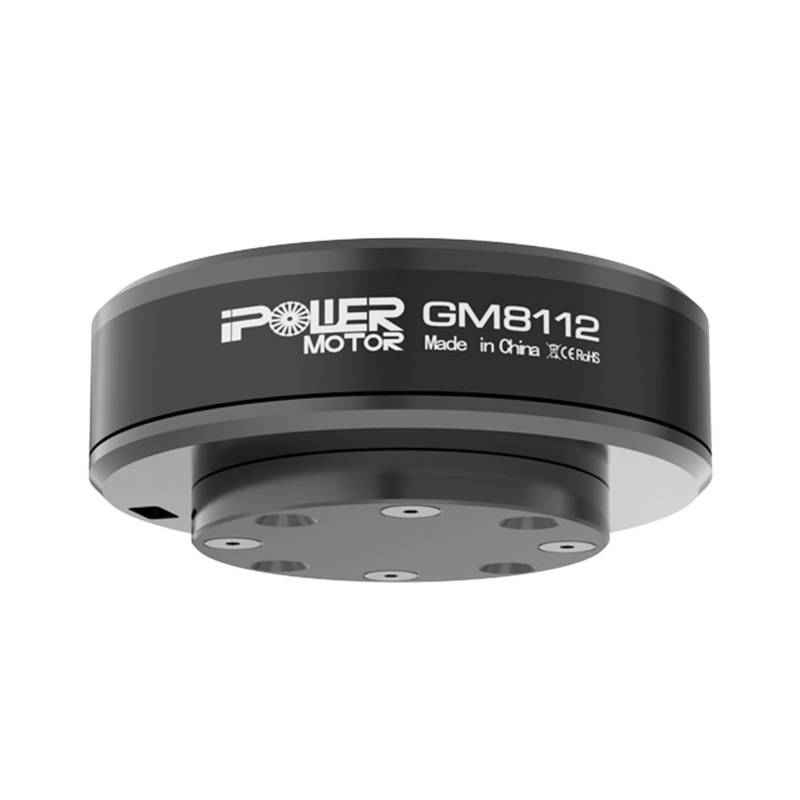

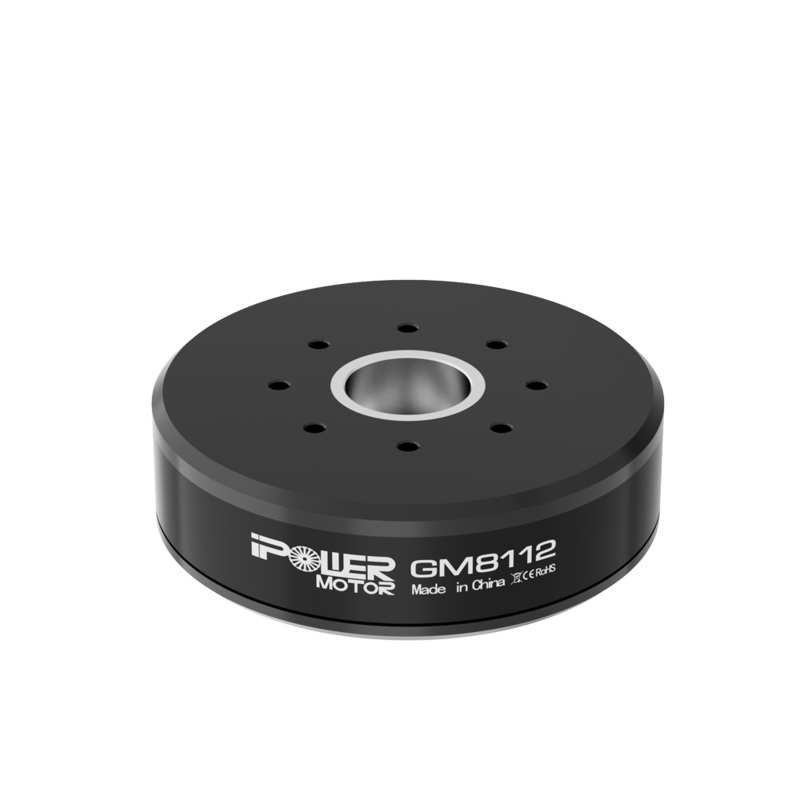

iPower GM8112-80T Gimbal Motor with Encoder

Description

The GM8112 motor by iPower Motors is the ultimate brushless gimbal motor for Red Epic / Large Cameras. This motor is designed for large scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear 6KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Specifications:

Model: GM8112

Motor Out Diameter: 89.50.05mm

Configuration: 36N/42P

Motor Height: 33.40.2mm (Included with Encoder housing)

Hollow Shaft(OD): 25-0.008/-0.012 mm

Hollow Shaft(ID): 22+0.05/+0.1 mm

Wire Length: 6103mm

Cable AWG: #24

Motor Weight: 4461g

Wire plug: 2.5mm dupont connector

No-load current: 0.30.1 A

No-load volts: 22V

No-load Rpm: 380~420 RPM

Load current: 2A

Load volts: 20V

Load torque(gcm): 6000-9000

Motor internal resistance: 4.25%Resistance varies with temperature

High voltage test: DC500V 1mA @2sec

Rotor housing runout: 0.1mm

Steering (axle extension): clockwise

High-low temperature test:

High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature

Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature

Maximum power: 80W

Working current: 3-5S

Working temperature: -20~60;10~90%RH

Packing List:

1 x iPower GM8112 Gimbal Motor

1 x AS5048A Encoder with aluminum case
