Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Model Number: Lumenier AXII HD

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Description

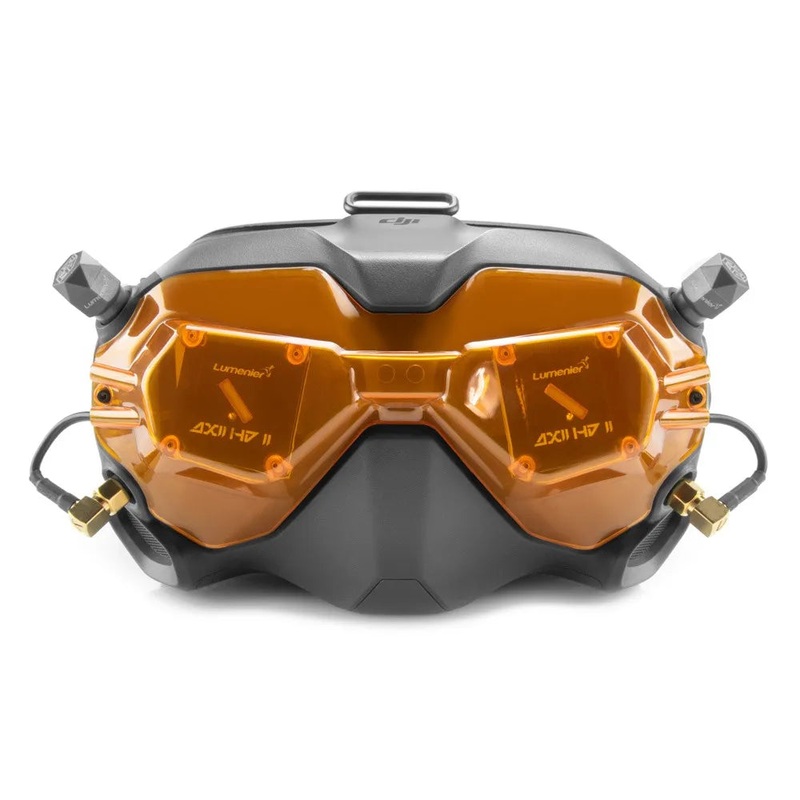

Specially designed for DJI high-definition digital FPV glasses, higher gain, more stable video transmission effect, better signal penetration for longer distances, high-gain directional and LHCP circularly polarized omnidirectional antenna, the shell is translucent black, Translucent green, semi-transparent orange three colors choose PC injection molding integrated high-quality shell.FOR DJI HD 2 Flat Panel Directional AntennaModel: LHCXRC HD-02Frequency range: 5.3GHz-6.0GHzGain: 8.6 dBiCVSWR: <=1.3Radiation efficiency: 94%Beam width: 75 H. 75 V.Polarized: (LHCP) Left Hand Circularly PolarizedInterface: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)Weight: 31gFOR DJI HD2 Cylindrical AntennaGain: 3.5dbicAxial ratio: 0.9Frequency range: 5.3GHz-6.0GHzRadiation efficiency: 98%Beam width: 360 degrees (omni-directional)VSWR: <=1.5Weight: 6.5gDimensions: 20mm x 28mmInterface: RP-SMA (custom long)Polarization: Left Hand Circularly Polarized (LHCP)
