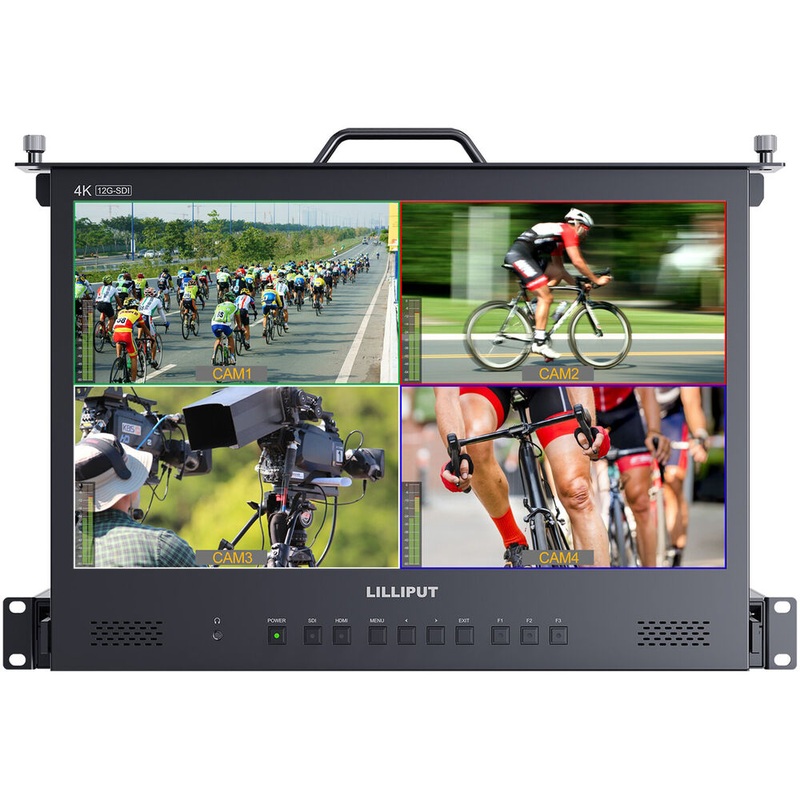

Lilliput RM-1730S 17.3″ 1RU Rack-Mount Monitor with 12G-SDI I/O

Description

Lilliput RM-1730S 17.3″ 1RU Rack-Mount Monitor with 12G-SDI I/O

The 17.3″ HDMI/12G-SDI Pullout Rackmount HD Production Monitor from Lilliput is a 17.3″ IPS LCD broadcast monitor with a resolution of 1920 x 1080. It features a slim, space-saving 1 RU pullout rackmount design and support for up to UHD 4K60 video input via 12G-SDI and HDMI. The 17.3″ IPS panel provides a 1200:1 contrast ratio, a viewing angle of 170, and 300 cd/m brightness.

The monitor features four 12G-SDI inputs, four 12G-SDI loop outputs, one HDMI 2.0 input, one HDMI 2.0 loop output, a USB-A input for 3D LUT upload, and an RJ45 port for remote control using your computer. This monitor supports multiple HDR colour spaces and the ability to load custom 3D LUTs for quick access to a variety of colour reference options. A 12 VDC power supply and a tally connector are included with the monitor.

Slim, Space-saving Design

A pullout space-saving design enables the monitor to use a 1 RU space on your cabinet or truck rackmount.

Interface

Interfaces include four 12G-SDI inputs and loop outputs, an HDMI 2.0 input and loop output, a USB-A input for uploading built-in or custom LUTs, and an RJ45 port for remote LAN control via your computer.

Monitoring Tools

Peaking, Check Field, Image Freeze

Pixel-to-Pixel Zoom, False Colour, Exposure

Vectorscope, Histogram

Anamorphic De-squeese, Screen Markers

HDR, Colour Space

Colour Temperature Adjustment

Image Flip, H/V Delay

Audio Metering

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity.

Enables colours and lighter and darker details to be displayed more clearly.

Supports HLG and ST2084 300/1000/10,000 HDR.

You can use any of the 17 default logs or load up to six of your own custom LUTs in .cube format via the USB port.

Audio

This monitor outputs embedded audio via a 3.5mm headphone jack and two speakers.

Provides channel selection and onscreen audio metering.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.

Remote Control and Tally

Use the RJ45 port to connect to your laptop or computer for remote control. The monitor also supports tally signaling and includes a tally adapter.

Key Features:

17.3″ 1920 x 1080 Resolution Monitor

Slim, Space-saving 1 RU Design

Up to UHD 4K60 Resolution Input

HDMI 2.0/12G-SDI Input & Loop Output

HDR Support, Load Custom 3D LUTs

170 H/V Viewing Angle, Tally Port

300 cd/m Brightness, 1200:1 Contrast

Remote Control via RJ45 LAN Port

What’s in the Box:

Lilliput RM-1730S 17.3″ 1RU Rack-Mount Monitor with 12G-SDI I/O
