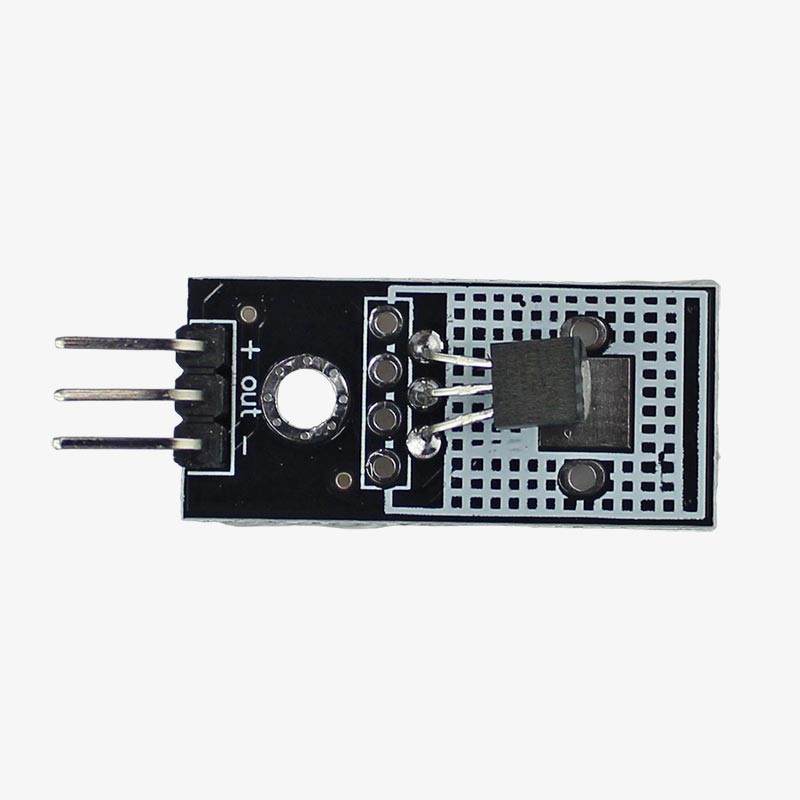

LM35D Analog Temperature Sensor Module

Description

This LM35D Analog Temperature Sensor Module is based on the semiconductorLM35temperature sensor. The LM35 Linear Temperature Sensor module is useful in detecting ambient air temperature. Sensitivity is 10mV per degree Celsius. The output voltage is proportional to the temperature.
It also possessesthe low self-heating and does not cause more than 0.1 C temperature rise in still air. The operating temperature range is from -55C to 150C. The output voltage varies by 10mV in response to everyC rise/fall in ambient temperature,i.e.,its scale factor is 0.01V/C.
It is commonly used as a temperature measurementsensors.It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion ofArduino Board,in combination, can be very easy to achieve.

Wiring Instructions:

• +: Positive power supply
• : Negative one
• out: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure.

Features :

• Based on the semiconductor LM35 temperature sensor
• Useful in detecting ambient air temperature
• Calibrated directly in Celsius (Centigrade)
• Linear + 10 mV/C Scale Factor
• 0.5C Ensure accuracy (at +25C)
• Low power consumption, less than 60uA
• Low output impedance, 1mA current through only 0.1
• With screw holes for easy installation and fixed. Aperture 2.6mm

Specifications:

Package Includes :
1 xLM35D Analog Temperature Sensor Module.
