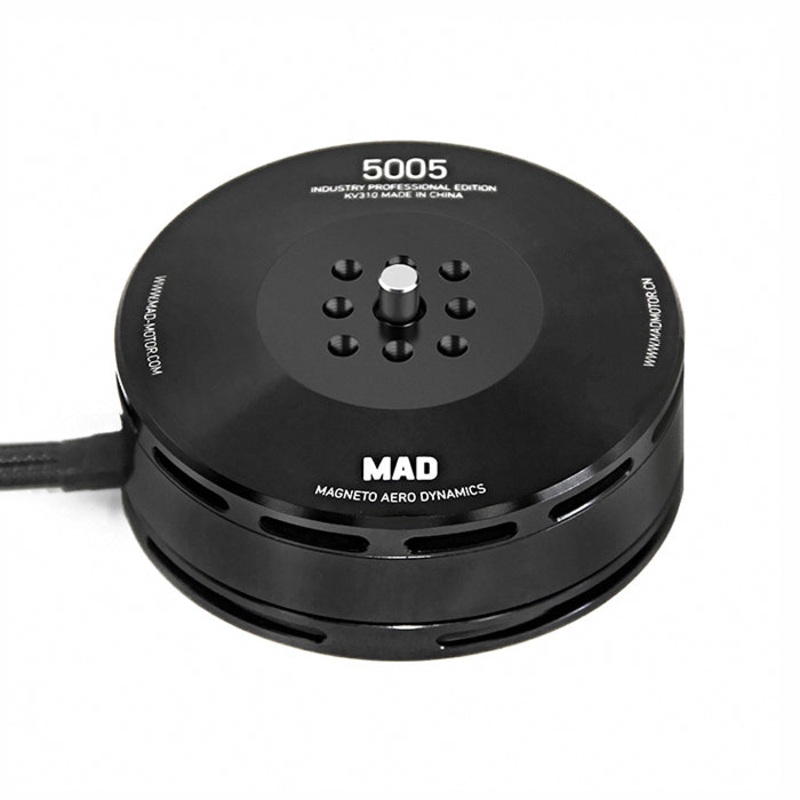

MAD 5005 IPE KV280 KV350 KV440 Brushless Motor For RC FPV UAV Drone Quadcopter Hexcopter Octcopter for RC Quadcopter Multicopter 280KV

Description

Product Overview:

Thrust-Optimized Performance

Continuous Thrust: 5001500g per motor (Ideal for stable, efficient operation)

Peak Burst Thrust: 92g per rotor (For critical maneuvers or emergency recovery)

Propeller Range: 1418″ carbon fiber or polymer

18″ Props: Max efficiency for heavy lifting

14″ Props: Agile response for high-speed applications

Built for Industrial Durability

Ultralight Design: Just 92g/motor (Reduces dead weight without sacrificing power)

Aerospace-Grade Materials: Precision bearings, reinforced alloy housing

Thermal Resilience: Optimized for sustained high-load operation

Specification
Motor Model	MAD 5005 IPE V2.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180C
Motor Size	D:56 26.3 mm	Magnet Degree	150C
Degree of Protection	IP35	Cable Length	150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	5 mg
Propeller Mounting Holes	D:12 M34, D:15 M34	Motor Balance	10 mg
Shaft Diameter	IN: 5 mm	Motor Mounting Holes	D:30 M34
Bearing	EZO 685ZZ*1 / EZO 695ZZ*1	Disruptive test	500 V

Why Professionals Trust the MAD5005 EEE
Predictable Power Delivery Stable thrust curves for precise flight control
Mission-Adaptive Reconfigure propeller sizing for efficiency vs. speed priorities
Overbuilt for Reliability Withstands vibration, dust, and moisture in harsh environments

Main Features:
Sustained thrust: 500~1500g
Max thrust: 3kg
Support voltage: 4S; 6S
Weight: 102g; 106g; 108g

Applicable Models:
Heavy-payload cinematography drones

Industrial inspection UAVs

Agricultural spray systems

Search-and-rescue operations

Recommended Accessories:

ESC: AMPX 40A PRO (2-6S)

Propellers: FLUXER PRO 15×5.0 MATT, FLUXER PRO 14×4.8 MATT, FLUXER PRO 13×4.4 MATT, FLUXER PRO 16×5.4 MATT, FLUXER PRO 17×5.8 MATT, FLUXER PRO 18X6.1 MATT, HAVOC 18×5.7 folding propeller, CFFLUXER-VTOL 16.1*6.4

Selection and Installation Notes:

Propeller size and pitch should match your aircraft configuration unsuitable propellers will reduce efficiency or cause motor/ESC overload.

Use an appropriately sized electronic speed controller (ESC) and ensure the wiring can withstand continuous and peak currents.

Ensure the structural supports and connectors can withstand torque and dynamic loads.

Perform balance checks and routine inspections before each manned flight.

Local aviation and manned flight regulations must be followed.

Frequently Asked Questions:

Q: Which propellers should I use? A: Propellers: FLUXER PRO 15×5.0 MATT, FLUXER PRO 14×4.8 MATT, FLUXER PRO 13×4.4 MATT, FLUXER PRO 16×5.4 MATT, FLUXER PRO 17×5.8 MATT, FLUXER PRO 18X6.1 MATT, HAVOC 18×5.7 folding propeller, CFFLUXER-VTOL 16.1*6.4

Q: Which ESCs are compatible?

A: Please use the models provided by the manufacturer: ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?

A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
