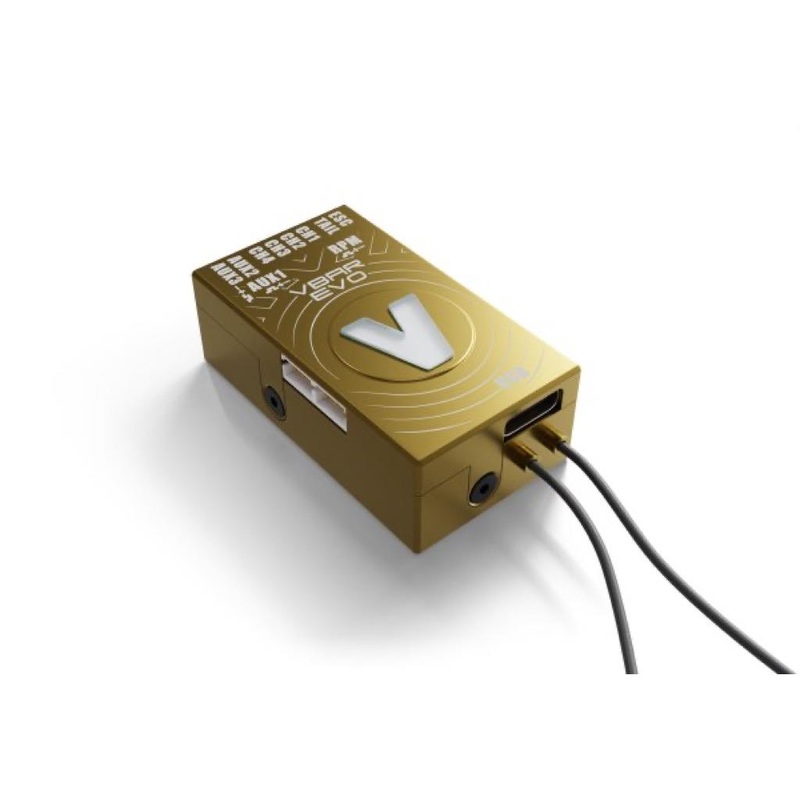

Mikado VBar EVO Alu-case, Gold, VLink 7.x Express : 05574

Description

Mikado VBar EVO Aluminium case, Gold, VLink 7.x Express : 05574

New processor: 500 MHz (NEO: 98 MHz), more memory, FPU, highest available computing power on the market to this date

Innovative step-up/step-down voltage supply from 2 V up to 16 V at full power with high efficiency (less excess heat)

Full telemetry and range down to 2 V supply voltage

Improved high frequency technology for high power and sensitivity

Double sensor system using tried and tested technology and new sensors

The hardware allows for new specs:

• Frame rates adjustable up to 1 kHz (1 ms) on the swash plate and 0.5 ms on the tail
• ESC frame rate up to 1 KHz
• Pulse width selectable between 1.5 ms down to 125 S as well as digital high speed protocols
• Improved algorithms: adjusted tot he new frame rates, new optimised digital filtering
• Dynamic swash plate rotation (per bank)
• New Tail Torque Extension for motor driven tails, more control when the tail rotor is unloaded
