Miniware Digital Oscilloscope DS213 (Quad Channel) [DG]

Description

Are you looking to buy a Miniware Digital Oscilloscope DS213in Australia?

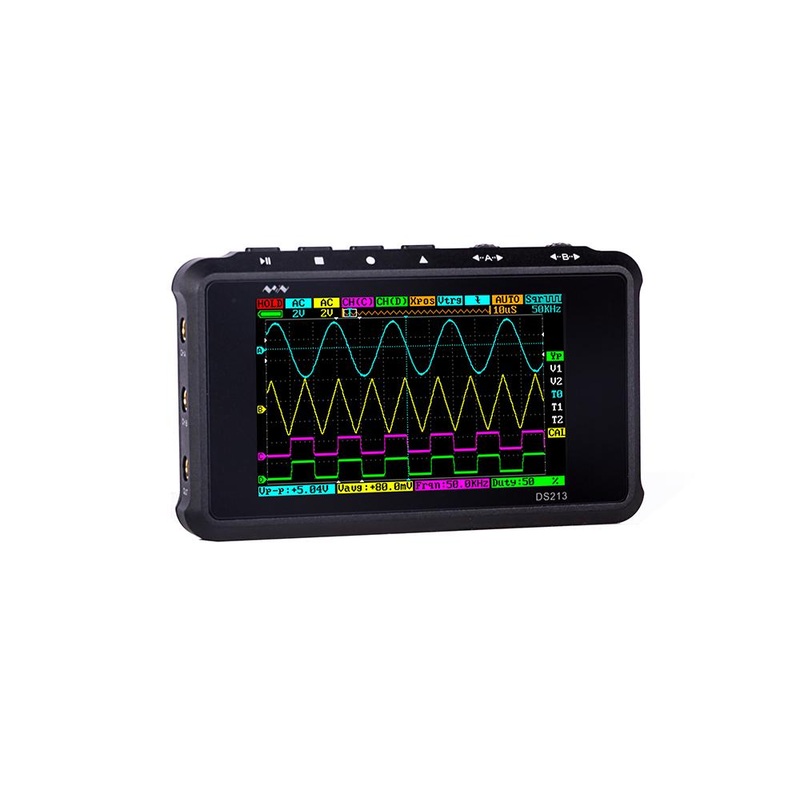

DS213 (Mini DSO/ DSO Quad) is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks.

Feature

• It is a pocket size digital storage oscilloscope is small enough to take it anywhereand fulfills basic electronic engineering requirements;
• DS213 is a 5-track, 4-wave line digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core;
• DS213 uses FPGA to manage external ADCs control and data cache mode;
• It provides 4 application partitions for loading and upgrading up to 4 different application firmware;
• Inbuilt 8MB U-disk storage for waveform data and images;
• Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation;
• The oscilloscope code application layer is open source;
• Users can develop firmware according to different needs;
• Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

Specification

• Operation: Button, Encoder
• Channels: 2 Analog channels+2 Digital channels
• H Sensitivity:100nS/Div~1S/Div. (1-2-5 sequence step)
• V Sensitivity:10mV-10V/div1-2-5 STEPwith X1 Probe Analyzer
  100mV-100V/div1-2-5 STEPwith X10 Probe Analyzer
• Trigger Mode:Ascend / Descend Edge Trigger Mode,Positive / Negative Pulse Trigger, Logic Trigger
• Math Waveforms:INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD
• Inbuilt Signal Generator:Sine / Square / Triangle / Sawtooth Wave
• Synchronous Mode:Auto, Normal, Single, Slow
• Auto Measurement:Signal Sequence / Cycle / Duty RatioPeak Voltage / Virtual Value / Max Value / Min Value / Average
• Open Source:Application Layer Open-Source
• MCU:STM32F103VE
• ADC:HWD9288
• Analog Bandwidth:15MHz
• Max Sample Rate:100MSa/s
• Max Sample Memory Depth:4K
• Analog Input Impedance:1M
• Coupling: DC / AC
• AUTO_FIT: None
• Weight: 129g

Package List

• DS213 (Black Color) 1
• X10 Probe Analyzer 1
• X1 Probe Analyzer 1
• Hex Key 1
• Safety Instructions 1
